Using Correct Center Link Position

IMPORTANT: Excessive power can damage an implement, and too large an implement can damage the tractor.

NOTE: Upper hole offers greater lift capacity. Lower hole offers greater ground clearance.

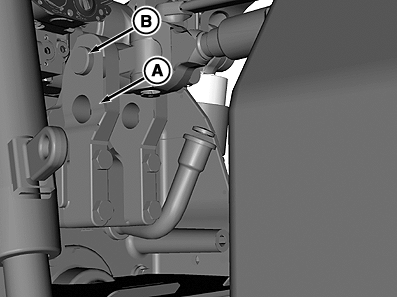

Attach center link to lower hole (A) for most standard implements. Use upper hole (B) when implements requiring higher lift capacity are used. See implement operator's manual for recommendations.

Refer to lift capacities in Specifications Section.

A-Lower Hole
B-Upper Hole
