Checking Neutral Start System-PowerShift Transmission

Fully depress clutch and brake pedals. Move shift lever (B) from PARK to a forward gear. Attempt to start engine. Starter should NOT engage.

If starter engages, neutral start system should be repaired by your John Deere Dealer immediately .

Repeat this step by placing shift lever (A) into a reverse gear.

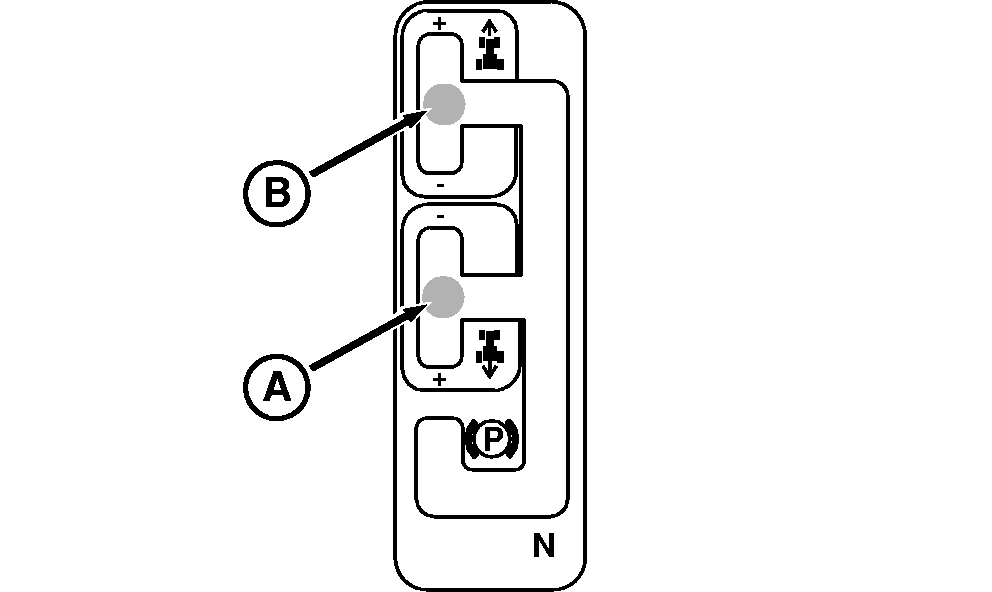

A-Shift Lever (In Reverse Gear)
B-Shift Lever (In Forward Gear)

OURX935,00004F1 -19-08JAN08-1/1
