Cleaning or Replacing Cab Air Filters

SERVICE INTERVAL -
  CLEAN - 250 HOURS *
  REPLACE-ANNUALLY

* Interval can vary according to operating conditions



causym CAUTION: Cab air filters are not designed to filter out harmful chemicals. Follow the instructions in the implement operator's manual and those given by the chemical manufacturer when using agricultural chemicals.

Recirculation Filter

Remove filter cover (A) behind seat and remove air filter (B). Replace or clean using compressed air. In dusty conditions, this service may be required more often.

Cab Air Filter

IMPORTANT: Thoroughly clean inside of housing before installing filter (E).

Remove cover (C) under right-hand corner of cab and retaining nut (D).

Replace or clean filter (E) using compressed air.


A-Filter Cover
B-Air Filter
C-Cover
D-Retaining Nut
E-Filter

RW26590

Air Filter Cover

RW26591

Air Filter Cover Removed

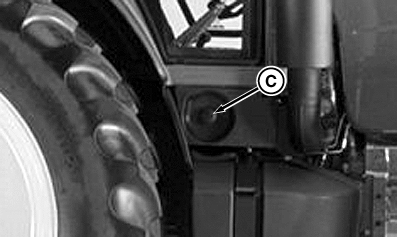

RXA0080148

Air Filter Cover Removed

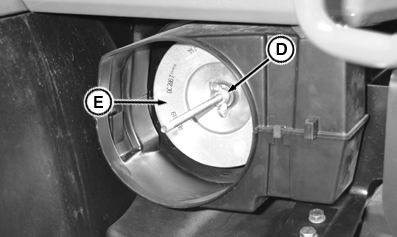

RXA0079687

Cab Air Filter

OURX935,00004F4 -19-08JAN08-1/1
