Cleaning MFWD Axle Vent Filter

SERVICE INTERVAL - 250 HOURS




OURX935,0000501 -19-08JAN08-1/2

SERVICE INTERVAL - 750 HOURS *
* Interval may vary according to operating conditions.



NOTE: If vent filter is packed with dirt, soak in solvent before blowing air through breather vent.

IMPORTANT: Allowing excess dirt and foreign material to build up in vent filter may cause damage to axle seals.

Remove axle vent filter (A). Clean by blowing air through vent filter (bottom to top).

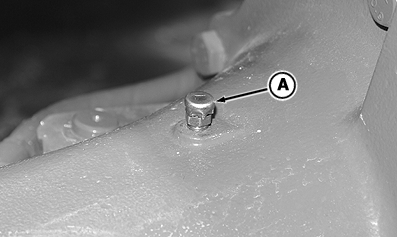

A-MFWD Axle Vent Filter

RXA0078357

OURX935,0000501 -19-08JAN08-2/2
