1300 MFWD Axle Toe-In Adjustment

1. Check to make sure axle is centered.

2. Loosen jam nuts (A) on both ends of the tie rod tube.

3. Rotate tube to lengthen or shorten tie rod, as needed to obtain toe-in or toe-out of less than 3 mm (1/8 in.). Each 1/8 turn equals approximately 4 mm (3/16 in.) change.

4. Tighten jam nuts (A) on both ends of tie rod tube.

Jam Nut - Specification

Nut -Torque 200 N·m (150 lb-ft)

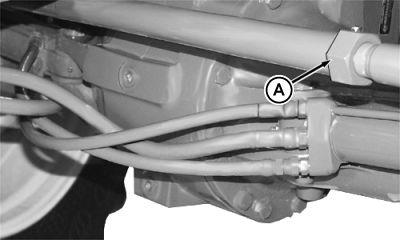

RW56646A

Loosen Jam Nuts


A-Jam Nut

OURX935,000050E -19-03JAN08-1/1
