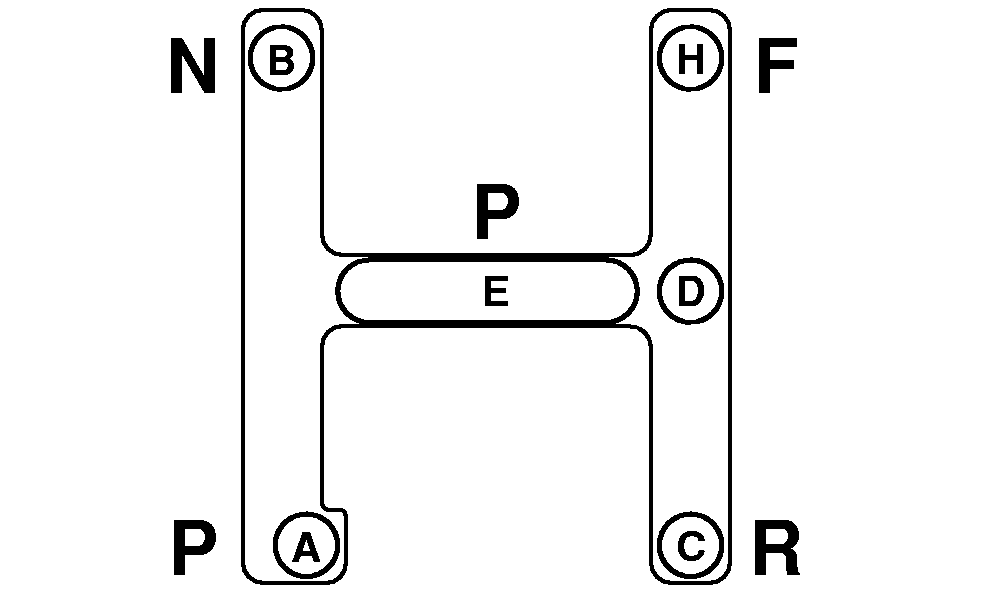

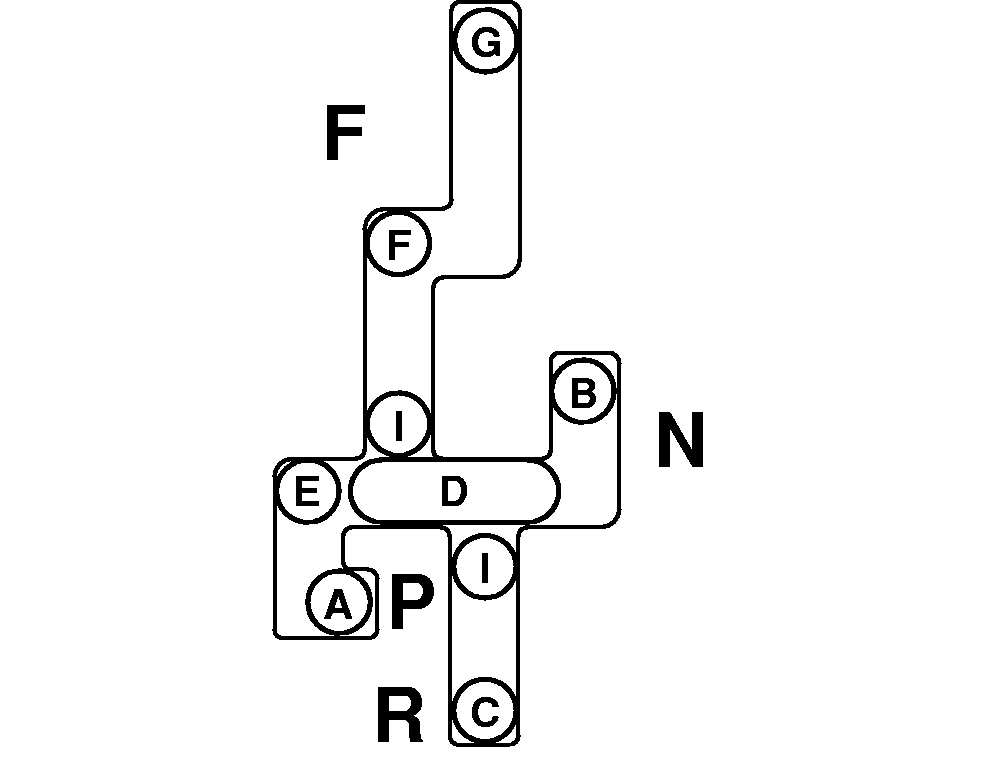

Left-Hand and Right-Hand Reverser Shift Patterns

Park (A): Locks transmission to hold tractor stationary, preventing it from rolling; "P" will appear on corner post display.

Neutral (B): Unlocks tractor, allowing it to roll, but does not transmit power to the wheels; "N" will appear on corner post display.

Reverse (C): Transmits power to wheels for rearward travel; "R" will appear on corner post display.

Power Zero (D): Hand-held position is used to temporarily hold tractor stationary on a relatively flat surface.

Scroll (E): Scrolls set speeds on corner post display.

Forward Speed Band 1 (F): Transmits power to wheels for forward travel; "F1" will appear on corner post display.

Forward Speed Band 2 (G): Transmits power to wheels for forward travel; "F2" will appear on corner post display.

Forward (H): Transmits power to wheels for forward travel; "F" will appear on corner post display.

Minimum Speed (I): Transmits power to wheels in direction selected.

A-Park
B-Neutral
C-Reverse
D-Power Zero
E-Scroll
F-Forward Speed Band 1
G-Forward Speed Band 2
H-Forward
I-Minimum Speed

OURX935,0000520 -19-09AUG05-1/1
