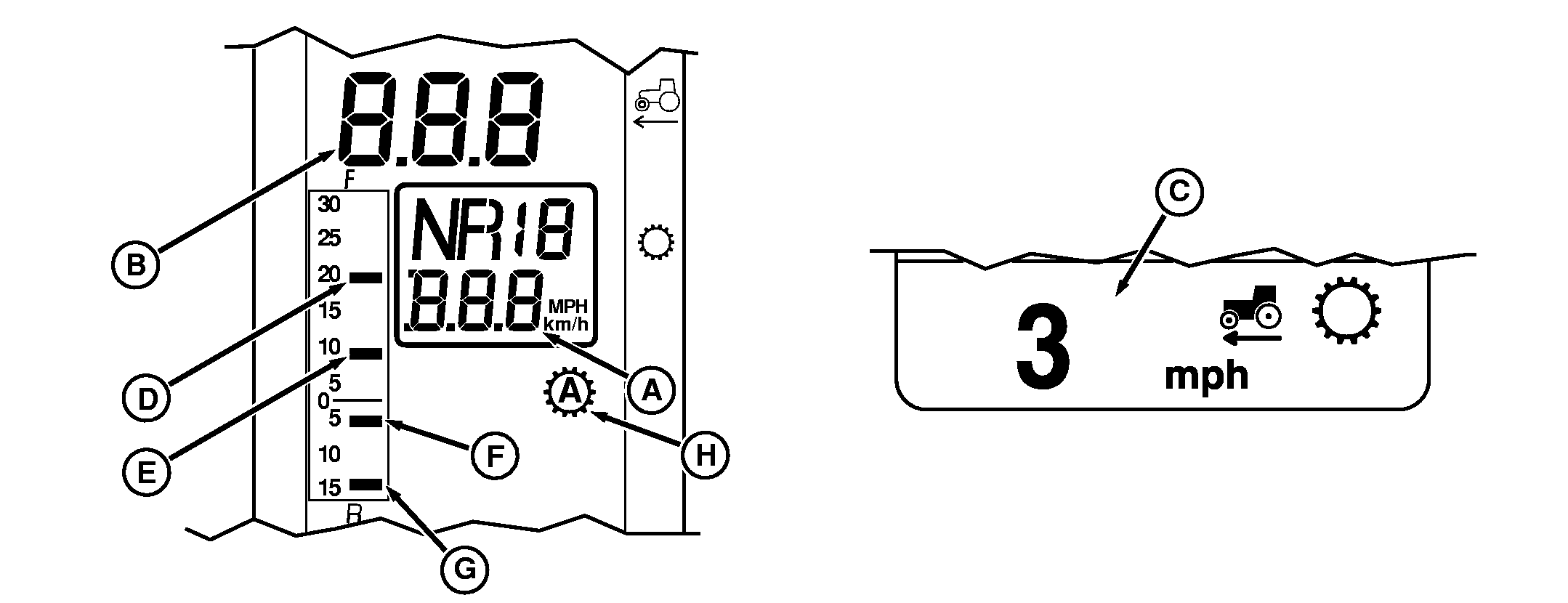

Corner Post And CommandCenter Displays

A-Set Speed
B-Ground Speed
C-Commanded Speed
D-Forward Set Speed 2 (FSS2)

E-Forward Set Speed 1 (FSS1)
F-Reverse Set Speed 1 (RSS1)

G-Reverse Set Speed 2 (RSS2) (Left-hand reverser only)

H-Full Load Symbol

Set Speeds

A set speed (A) is the maximum ground speed of selected speed band.

Ground Speed

The ground speed (B) value on tractors equipped with radar will always show a lower value than the set speed selected if there is measurable wheel slip.

Commanded Speed (CommandCenter Display)

Commanded speed (C) is determined by any given position of the speed control lever at full engine speed.

If the lever is pushed all the way forward to the end of the speed band slot, commanded speed will equal set speed.

Set Speed Bar Graph

Set Speed bar graph indicates set speed values by their relative position on the graph. Settings (D) and (E) are examples of Forward Set Speeds and are indicated on top part of graph. Settings (F) and (G) are examples of Reverse Set Speeds and are indicated on bottom part of graph.
