Road and Field Light Identification and CommandCenter Indicators

RXA0082638

Field Position 2 Shown With All Lights On (Early Model Tractor)


A-Field Lights, Front Inner
B-Field Lights, Front Outer (Standard or HID-Xenon)
C-Road Lights, High/Low Beam
D-Field Lights, Cab Beltline
E-Field Lights, Inner Front Cab
F-Field Lights, Outer Front Cab


G-Field Lights, Fender Rear (Standard or HID-Xenon)
H-Field Lights, Cab Roof Side (If Equipped)
I-Indicator, Field Light Position
J-Center Spot Light (HID/Xenon only)
K-Amber Hazard Lights
L-Clearance Lights


M-Field Lights, Cab Rear Roof
N-OFF Position
O-Park Position
P-Road Position
Q-Field Position
R-Egress Position (If Equipped)
S-Field Light 2 Position
T-Field Light 1 Position


U-On/OFF Switch, Field Lights
V-Red Tail Light
W-ON/OFF ICON
X-License Plate Lamp
Y-Extremity Clearance Lights (If Equipped)
Z-Extremity Transport Lights (If Equipped)

OURX935,000052B -19-23AUG06-1/3

NOTE: High Intensity Discharge (HID/Xenon) Field Lights are installed in place of standard outer field lights (B).

causym CAUTION: Avoid injury caused by accidental collision with another vehicle. Always comply with traffic regulations when driving tractor on a road. Dim headlights to low-beam for oncoming vehicles. Avoid using field lights which could blind or confuse other drivers.

Standard Light Switch has four positions (N-Q) and operates regardless of key position. With optional Egress lighting, Light Switch has five positions; the same four as standard Light Switch, plus delayed shut-down position (R).

OFF Position (N):

Turns all lights off.

P (Park) Position (O):

Turns on front clearance lights (L), extremity clearance lights (Y), red tail lights (V), and license plate light (X).

Road Position (P):

Turns on high/low beam road lights (C), front clearance lights (L), extremity clearance lights (Y), and red tail lights (V).

NOTE: Refer to PROGRAMMING LIGHTS for set-up information.

Field Position (Q) :

Turns on clear-lens lighting (A - H and J and M) programmed for each Field position.

Delayed Shut-Down Position (R) ((If Equipped)):

Momentarily turn light switchcounterclockwise from the OFF position to activate delayed egress lighting. Cancel egress lighting by turning switch clockwise to Road position and then OFF.

Programmed lighting will remain on for 90 seconds, then shut off automatically. Each additional time switch is turned counterclockwise adds 30 seconds to time lights remain ON up to 3 minutes maximum.

Automatic Battery Protection Feature

To prevent battery discharge if headlights or field lights are left on accidentally after shutting off engine and removing ignition key, the electrical system will automatically start following sequence:

  • After 30 minutes have elapsed, lights will turn on and off 5 times
  • After 5th time, lights will turn back on and stay lit for about 60 seconds
  • After 60 seconds, lights will go off and stay off to prevent complete battery discharge

OURX935,000052B -19-23AUG06-2/3

RXA0089970

Early Model Tractor

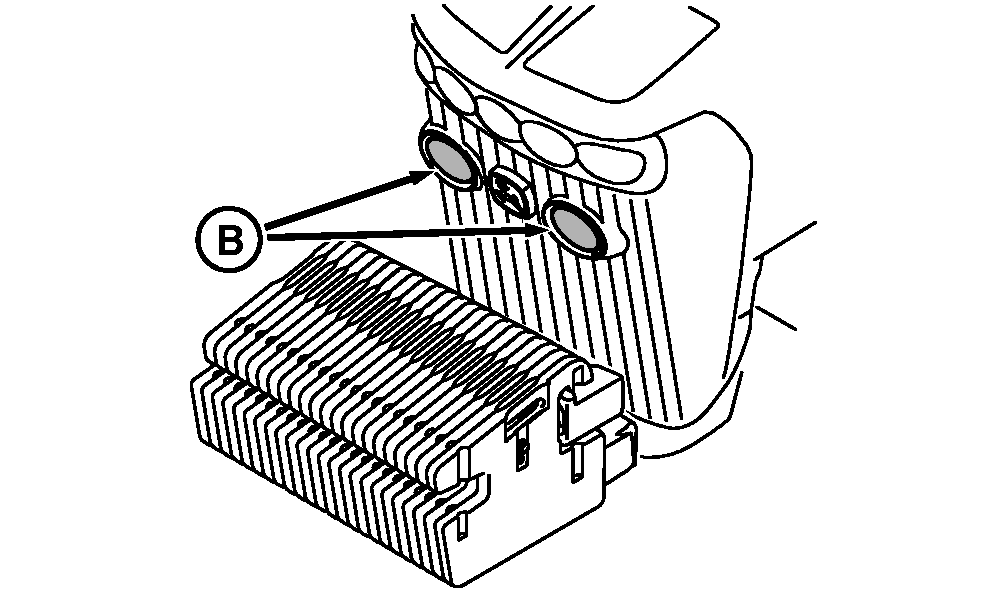

RXA0089971

Late Model Tractor


A-Road Lights-Early Model

B-Road Lights-Late Model



OURX935,000052B -19-23AUG06-3/3
