Using Engine Coolant Heater-If Equipped

causym CAUTION: To avoid electrical shock or fire, use a three-wire, 14 AWG (14 gauge), heavy-duty electrical cord with 15-amp rating, suitable for outdoor use.

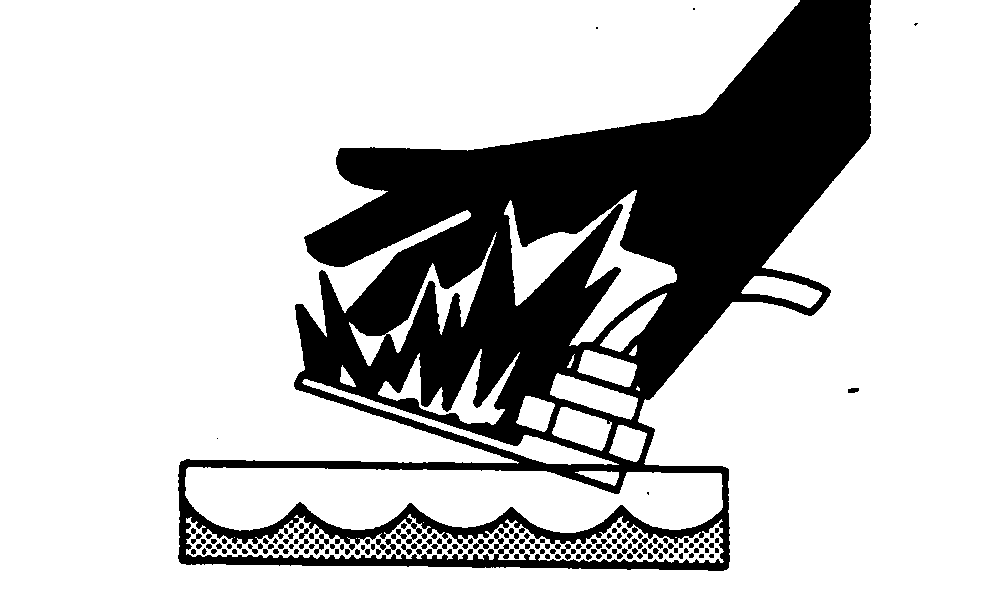

Before connecting heater to power source, be sure that the element is immersed in coolant. NEVER energize heater in air. Doing so can cause element sheath to burst causing personal injury.

  • Engine Block (1000 W)

The 1000-watt, 220-volt coolant heater is located on left-hand side of engine.

By warming engine coolant the heater reduces oil drag, eases starting and shortens warm up time.

TS210

OURX935,000052C -19-22MAR06-1/1
