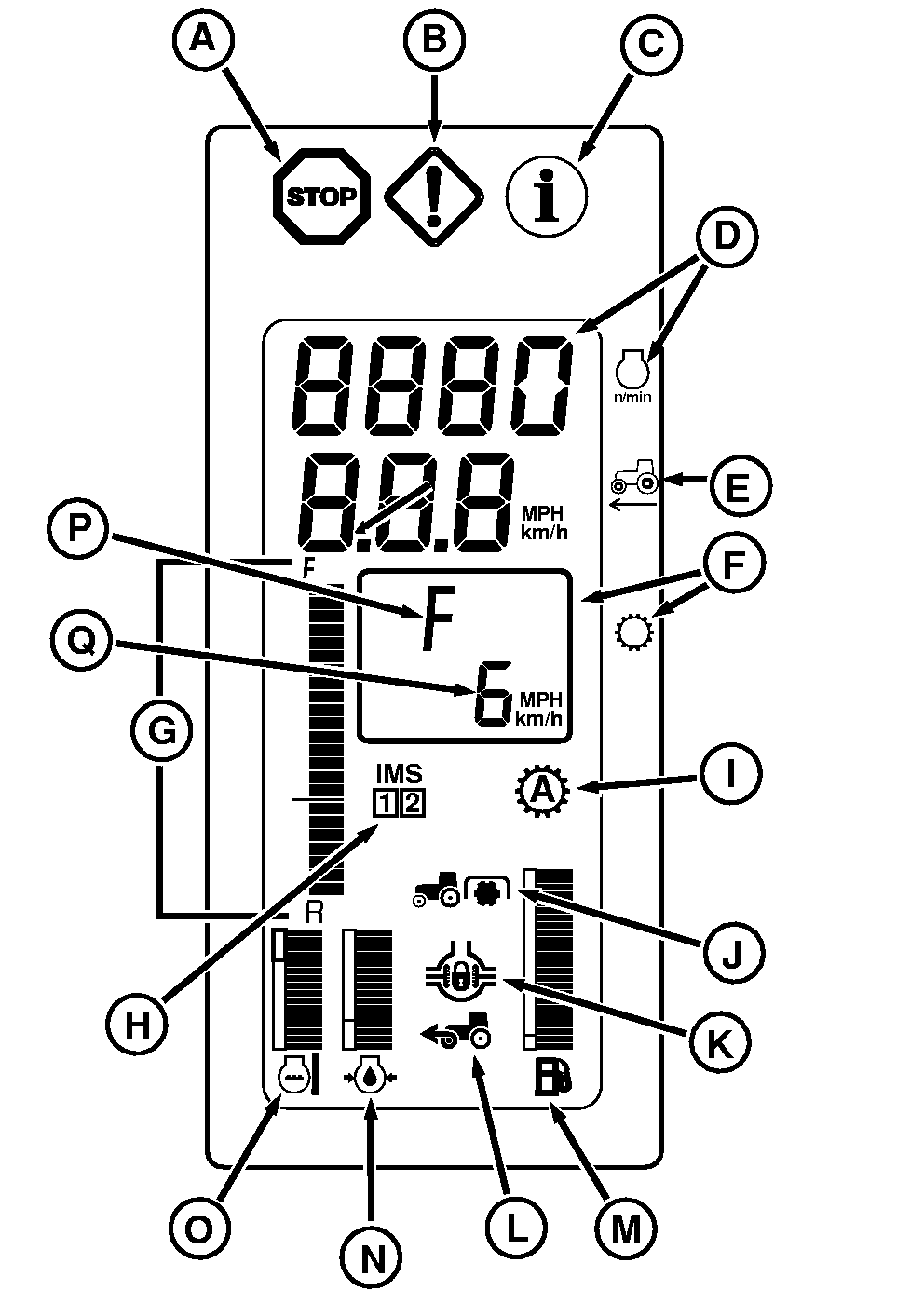

Corner Post Display
NOTE:
Operation indicators (H-L) activate when function is engaged.
A-STOP Indicator
B-Service Alert Indicator
C-Information Indicator
D-Tachometer
E-Ground Speed
F-Transmission Indicator
G-Set Speeds AutoPowr™ or Analog Speedometer
H-IMS ON/OFF and Sequence Indicators
I-Automatic Powershift Indicator
J-PTO Indicator-Rear
K-Differential Lock Indicator
L-MFWD Engaged Indicator
M-Fuel Level Gauge
N-Engine Oil Pressure Gauge
O-Coolant Temperature Gauge
P-Direction
Q-Gear/Speed
|
