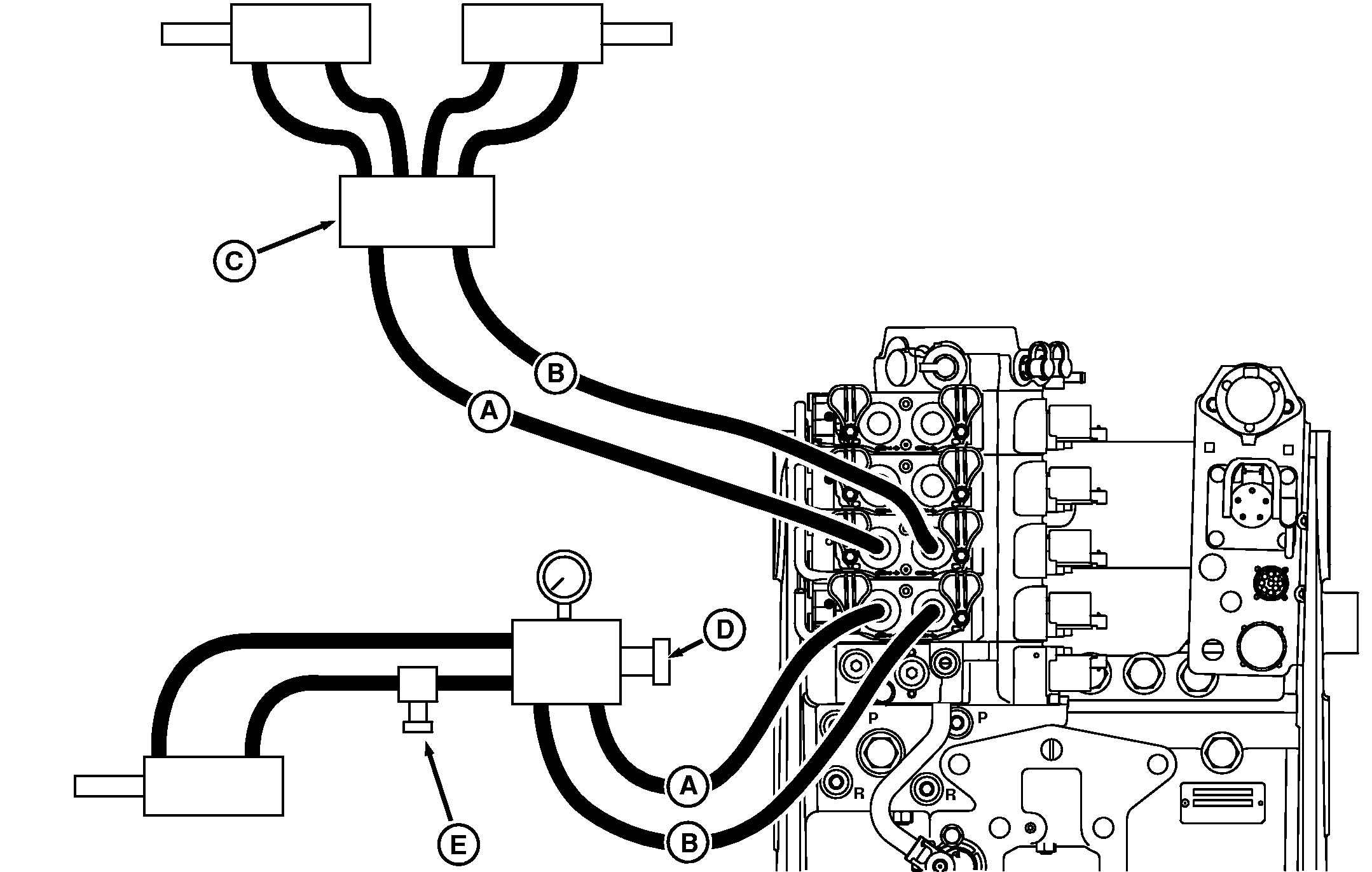

Implement Connection Example 1-Pressure Control Valve Applications (Grain Drills or Air Seeders with Constant Down-Pressure System)

RXA0079636


A-Extend Coupler Line
B-Retract Coupler Line


C-Selector Valve


D-Pressure Control Valve


E-Transport Lock Valve

For implements using active down force set flow control to continuous and move lever to retract detent position.

This will cause hydraulic pump to operate at maximum pressure which may cause overheating of hydraulic oil

if operating hydraulic motors on other SCV's at same time outside air temperature is high. To avoid this problem, keep the number of motors to a minimum when active down force is being used.

OURX935,000053C -19-26JUL05-1/1
