Using Enabling Mode (Come Home)

RXA0083933

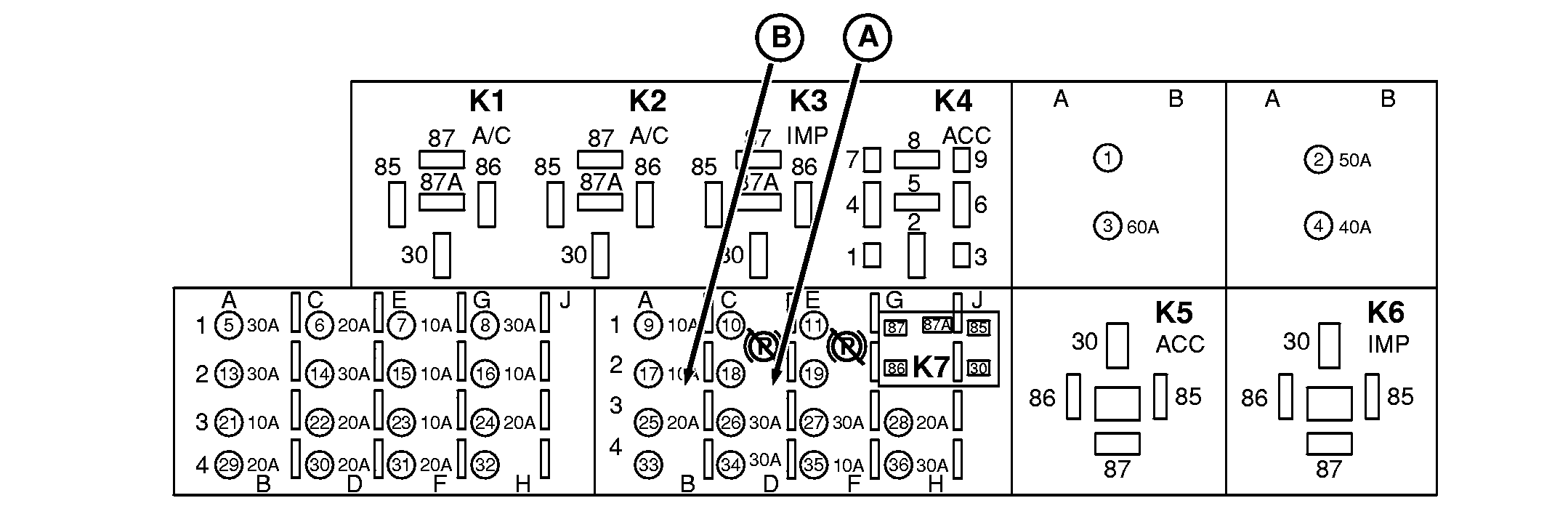

Come Home Mode



A-Fuse # 18

B-Fuse Location # 17



Enabling mode allows tractor to be operated at a maximum of 8 km/h (5 mph) in forward position and 3 km/h in reverse at full throttle if certain transmission malfunctions occur.

NOTE: AutoClutch and AutoPowr selector features will not operate when transmission is in Enabling Mode.

1. Move fuse # 18 (A) to fuse location # 17 (B).
2. Start tractor.
3. Depress clutch pedal.
4. Select Forward or Reverse direction.
5. Release clutch pedal to put tractor in motion.

OURX935,000053D -19-27MAR06-1/1
