Inspecting Neutral Start System-AutoPowr Transmission

2. Fully depress clutch and brake pedals.

3. Move left-hand reverser to any position except NEUTRAL or PARK position.

4. Start engine. If engine starts in any of these positions, neutral start system should be repaired. See your John Deere Dealer immediately.

For AutoPowr tractors equipped with left-hand reverser, engine will start in NEUTRAL or PARK positions.

For AutoPowr tractors equipped with right-hand shift controls, engine will only start in PARK.

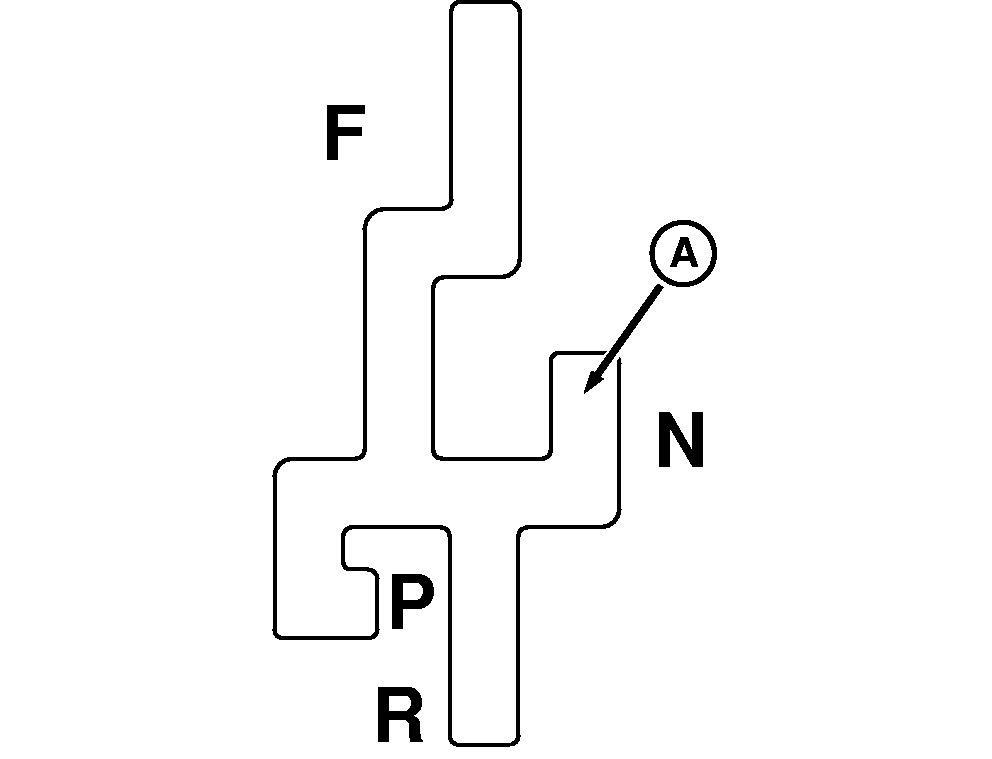

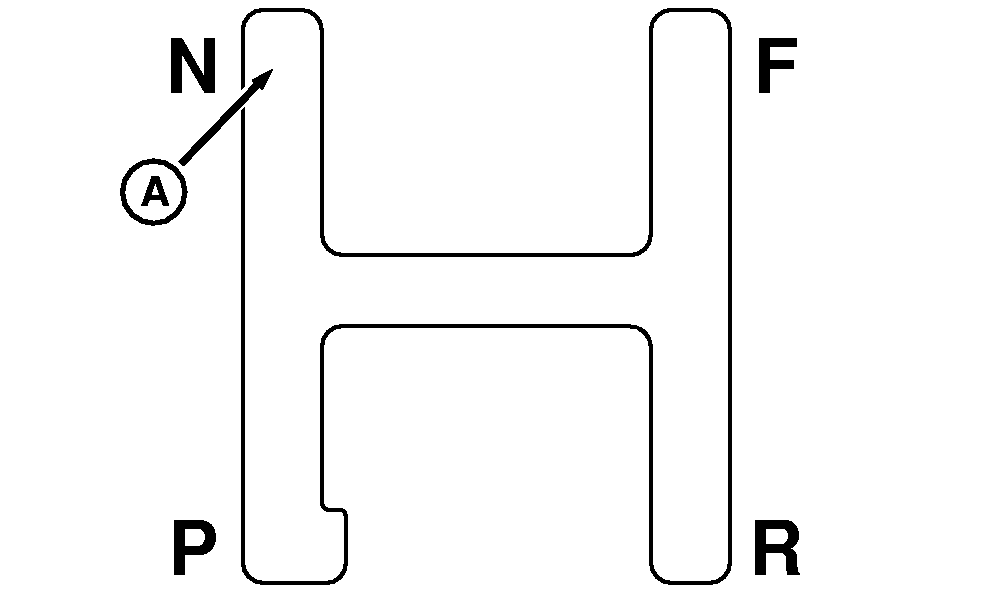

A-Shift Lever in Neutral

OURX935,0000541 -19-08JAN08-1/1
