Cleaning Transmission Filter Screen (AutoPowr Only)

IMPORTANT: For tractors with AutoPowr refer to your John Deere dealer with any question you have on removing hydro control valve and/or transmission filter screen.

When working with hydraulic components, cleanliness is essential and ANY FOREIGN MATERIAL (DIRT) can damage equipment! Clean area around the hydro control valve thoroughly with steam cleaner prior to removing it, then make sure valve is clean before installing it. On AutoPowr transmissions, do not remove screen unless it is dirty.

IMPORTANT: Removing hydro control valve requires a 1 1/4 in. (deep broach) deep well socket to avoid damaging control valve.

1. Remove AutoPowr transmission bottom cover shield if not already removed.

OURX935,0000543 -19-08JAN08-1/3

IMPORTANT: Make sure wiring harness (B) is disconnected and kept out of the way of any dripping oil before removing screen access plug. Oil in wiring harness connectors will damage equipment.

2. Remove connectors (A) on control valves then tuck wiring harness out of the way.

NOTE: Make sure 1 1/4 in. deep well socket has a broach (C) deep enough that control valve is not damaged when it is removed.

3. Using a 1 1/4 in. deep broach deep well socket, remove CU hydro valve (D).

4. Remove screen access plug (E) at front of transmission, then remove screen (F).

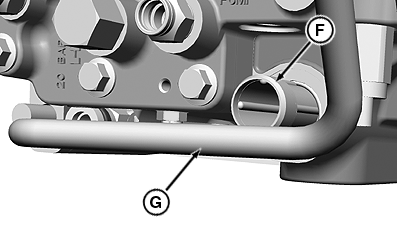

NOTE: For tractors with Independent Link Suspension, carefully flex Independent Link Suspension tube (G) down enough to remove screen (F).

5. Flex steel tube across the front of the screen slightly to allow screen to be pulled out of transmission case.

6. Remove filter screen and wash carefully in solvent. Blow dry with compressed air before reinstalling screen.

7. Install screen in transmission, front screen plug, and bottom drain plug.

8. Reinstall control valve and wiring harness connections.

9. Reinstall all drain plugs after oil has drained.

10. Refill with transmission/hydraulic oil specified in Fuels, Lubricants, and Coolant section.


A-Connectors
B-Wiring harness
C-Deep Well Deep Broach Socket
D-Hydro Valve
E-Screen Access Plug
F-Screen
G-Independent Link Suspension Tube

RXA0083068

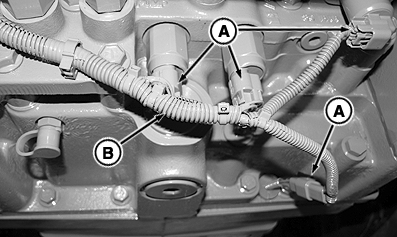

Remove Connectors

RXA0083064

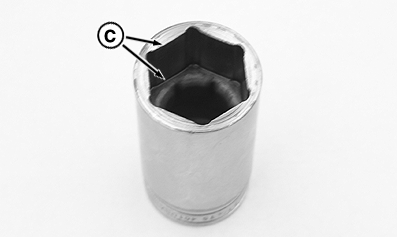

1 1/4 in. Deep Well Deep Broach Socket

RXA0083072

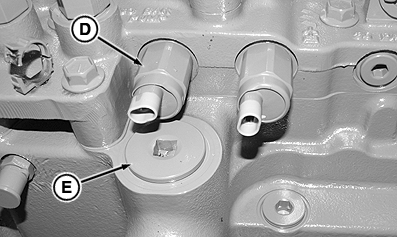

Remove Plug

RXA0086863

OURX935,0000543 -19-08JAN08-2/3

Drain and Fill Capacity *

1300 MFWD Axle:
.. System ... 150 L (40 gal)
.. System (Less Clean Oil Reservoir) ... 117 L (30 gal)

Independent Link Suspension Axle:
.. System ... 160 L (42 gal)
.. System (Less Clean Oil Reservoir) ... 127 L (34 gal)

* Capacities are average values and can vary between oil changes



11. Start and operate engine several minutes. Check for leaks. Stop engine and recheck oil level after a minimum of five minutes. Add oil as necessary.

OURX935,0000543 -19-08JAN08-3/3
