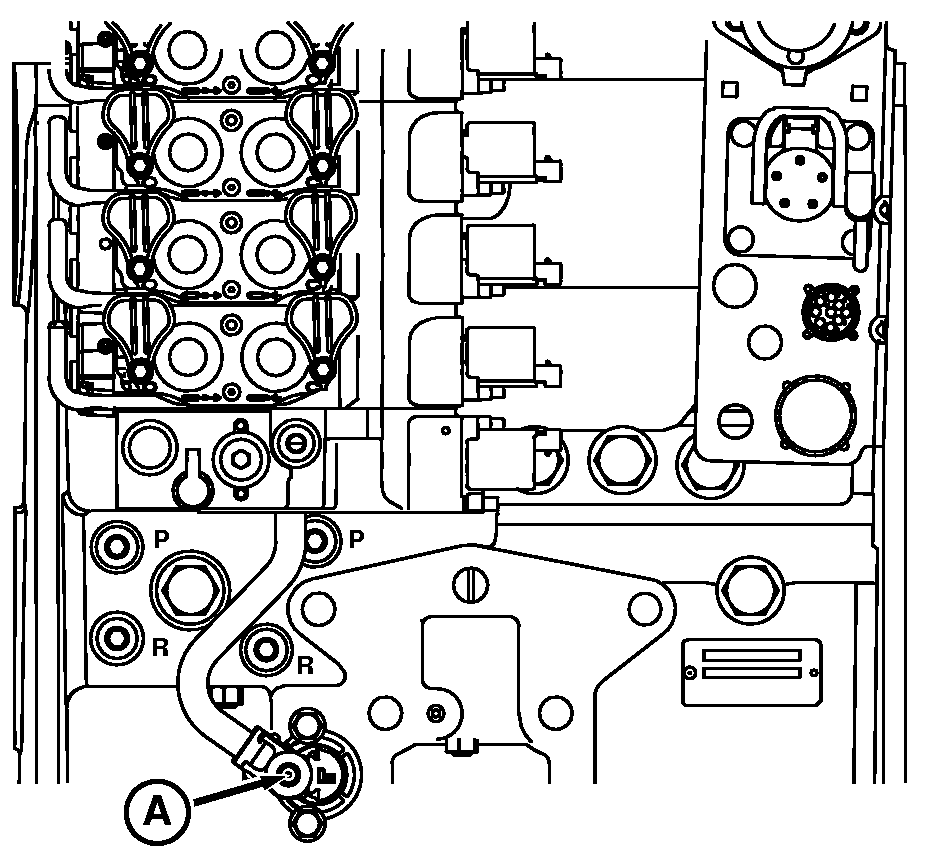

Using Hydraulic Motor Case Drain (Sump)Remove plug (A) and install a hydraulic sump coupler available from your JOHN DEERE ™ Dealer. Connect motor case or seal drain hose to coupler, making sure hose end and coupler are clean. Allows oil to drain directly to reservoir (differential case) from hydraulic motor, by-passing remote coupler, SCV, and filter.
|
|
|
JOHN DEERE is a trademark of Deere & Company | OURX935,0000543 -19-25JUL05-1/2 |
|

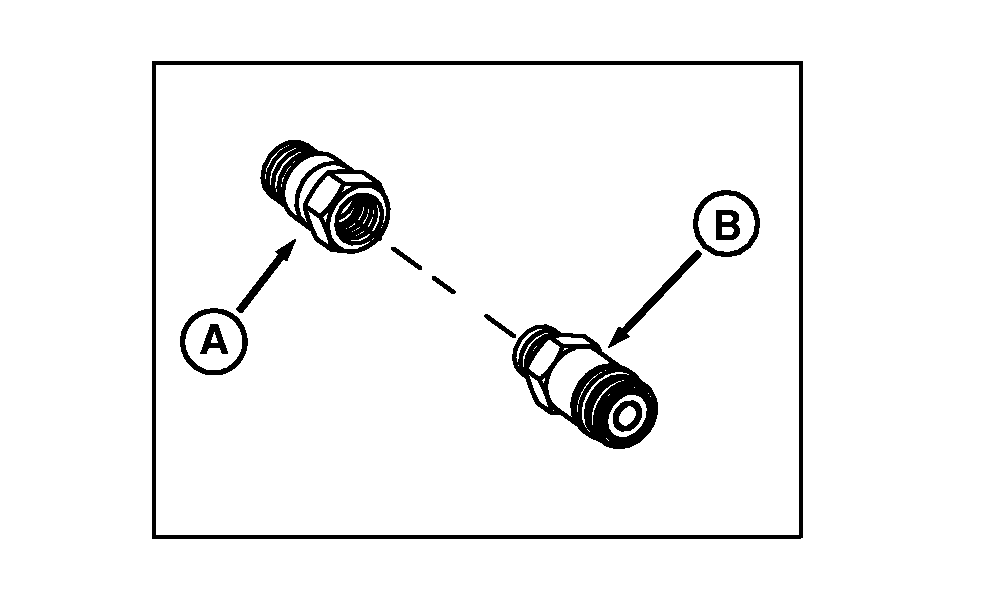

NOTE: Couplers may vary depending on equipment. Older equipment uses a standard coupler while newer seeding equipment may require a Flat Face coupler and adapter for the drain.
|
|
OURX935,0000543 -19-25JUL05-2/2 |
