1-Not Used
2-Accessories
3-Implement Power
4-Blower Motor
5-Key Switch
6-ATC and Pressurizer Blower
7-Radio, Steering Column, Horn, Clock and Dome Light-Unswitched Power
8-Right-Hand Junction Block, Convenience Outlet and Lighter-Battery Power
9-Alternator

10-Reserved-Used for AutoPowr Only
11-Reserved-Used for AutoPowr Only
12-None
13-Implement ELX, Controllers
14-Accessory Relay/7 Pin
15-Beacon and Power Mirrors
16-Hazard and Light Switch
17-Not Used
18-Come Home Mode-AutoPowr Only

19-Not Used
20-Not Used
21-Operator Presence Seat Switch
22-Flex Cab Controller
23-SSU Power
24-Engine Control Unit (ECU)
25-Seat Controls
26-Business Band Radio, CB Radio, Field Office, Left-Hand Junction Block-Acc Key Switch
27-Convenience Right-Hand Junction Block, Accessories

28-Spare
29-Hydraulic Controller (Optional)
30-SCU
31-Not Used
32-Electric Fuel Pump
33-Not Used
34-Field Lights, Inner and Outer Cab Roof
35-Spare
36-Spare

K1 - AC Relay, ATC

K2 - AC Relay Pressurizer Blower Motor

K3 - Not Used

K4 - Not Used

K5 - Accessory Relay

K6 - Implement Power

K7 - Trailer Brake Lights

OURX935,0000547 -19-27MAR06-2/3

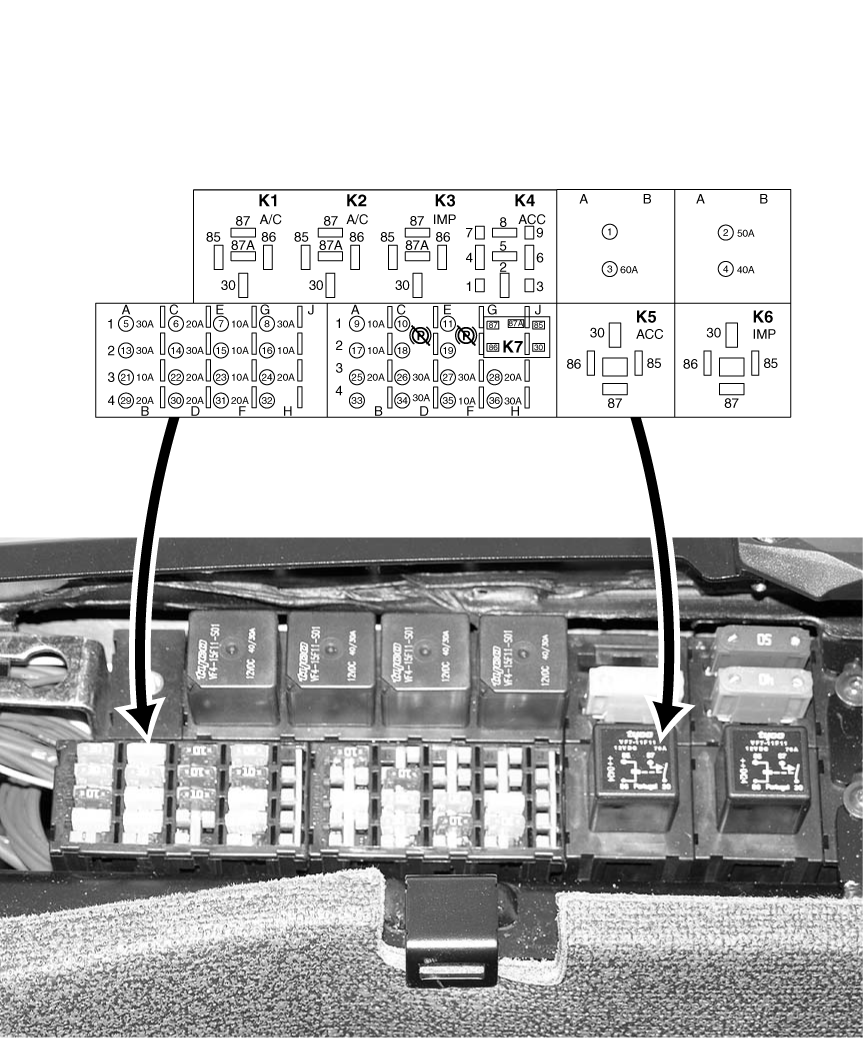

IMPORTANT: Fuse replacement must be the same rating as the original.

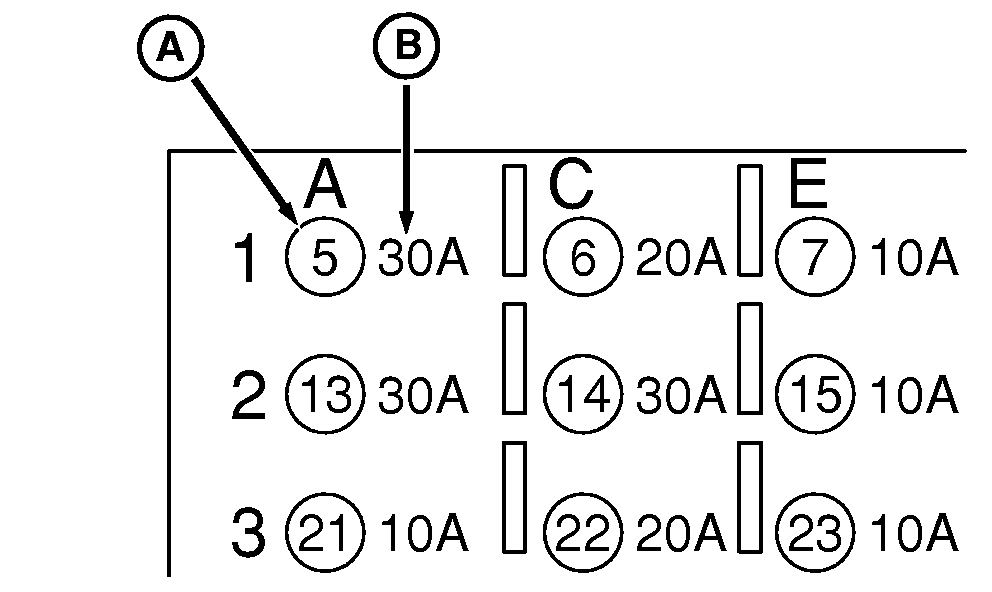

This key will help identify appropriate fuse location, fuse size and which slot goes with which fuse.

A-Fuse Location
B-Fuse Size
