MFWD and Independent Link Suspension Front Tire, Fender and Steering Stop Settings

RXA0083932

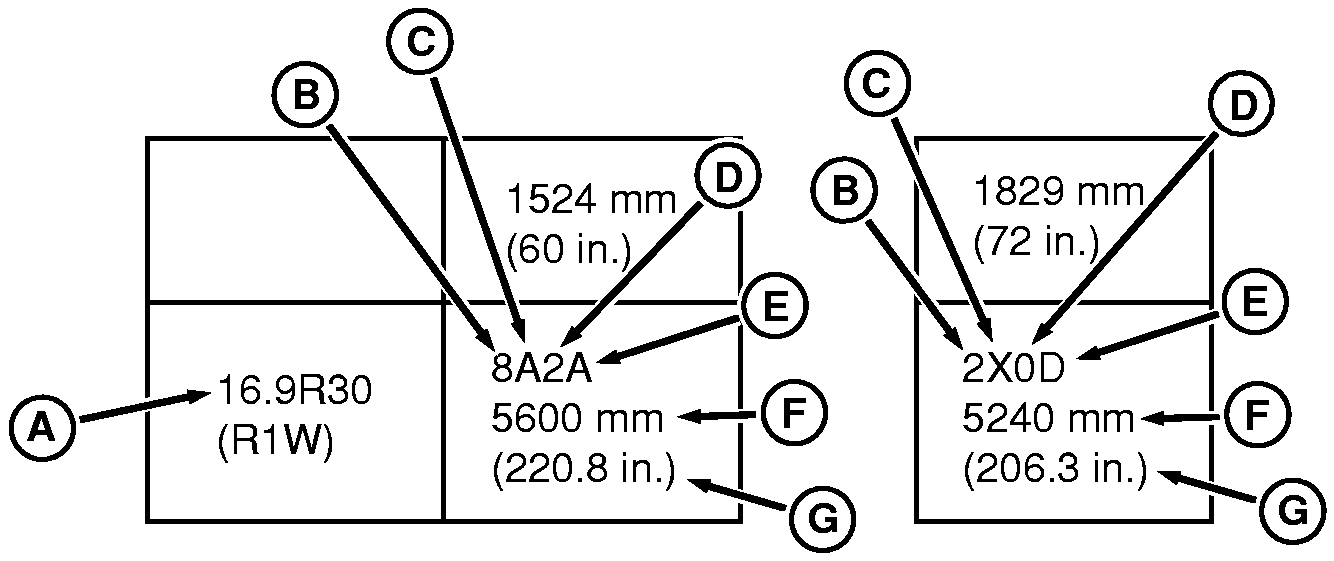

Explanation of Tire Option Tables


A-Tire Size
B-Two or Eight Position Rims


C-Tread Setting
D-Steering Stop Setting


E-Fender Setting
F-Turning Radius in Millimeters


G-Turning Radius in Inches

NOTE: This is an explanation of the tables in the next several pages.

The first row across the top of the page list tread spacing in millimeters and inches.

Column one lists the tire size (A).

The first number (B) in column two identifies either two or eight position rim is used. The first letter (C) indicates which example to follow from the Eight Position Wheel Settings. There are only two possibilities for the two position rim, either in or out. In this table "X" will represent the in setting and "Z" will represent the out setting. The next number (D) is the correct steering stop position. The last letter (E) is the fender setting, which is taken from either Fender Settings for MFWD or Fender Settings for Independent Link Suspension. Entries (F) and (G) indicates turning radius in millimeters and inches respectively. If the last character is a "w", wide fenders are used for this application.

OURX935,0000550 -19-10JAN08-1/6

1300 MFWD Axle Front Tire, Fender and Steering Stop Settings
Size 1577 mm
(62 in.)		 1679 mm
(66 in.)a		 1780 mm
(70 in.)		 1829 mm
(72 in.)		 1877 mm
(73.9 in.)		 1882 mm
(74.1 in.)		 1956 mm
(77 in.)
16.9R30
R1W		 8A2B
6750 mm (265.7 in.)		 8B1C
6320 mm (248.8 in.)		 8C0D
6080 mm (239.4 in.)		 2IN0D
5270 mm (207.5 in.)		 8E0E
5950 mm (234.3 in.)		 8D0E
5860 mm (230.7 in.)		 2Z0F
5310 mm
(209.1 in.)
420/85R34 8A3A
6100 mm (240.2 in.)		 8B2C
5990 mm (235.8 in.)		 8C2C
6040 mm
(237.8 in.)		 N/A 8E1E
5720 mm
(225.2 in.)		 8D1E
5720 mm
(225.2 in.)		 N/A
480/70R30 8A2B
6750 mm (265.7 in.)		 8B1C
6320 mm (248.8 in.)		 8C0D
6080 mm (239.4 in.)		 2X0D
5270 mm (207.5 in.)		 8E0E
5950 mm (234.3 in.)		 8D0E
5860 mm (230.7 in.)		 2Z0F
5310 mm
(209.1 in.)
480/70R34 8A3A
6100 mm (240.2 in.)		 8B2C
5990 mm (235.8 in.)		 8C1D
5670 mm
(223.2 in.)		 2X1D
5840 mm (229.9 in.)		 8E0E
5350 mm (210.6 in.)		 8D0E
5350 mm (210.6 in.)		 2Z0F
5380 mm
(211.8 in.)
540/65R30 N/A 8B1Bw
6450 mm (253.9 in.)		 8C0Bw
6070 mm (239 in.)		 2X0Cw
5270 mm (207.5 in.)		 8E0Cw
5350 mm (210.6 in.)		 8D0Cw
5350 mm (210.6 in.)		 2Z0Dw
5310 mm
(209.1 in.)
540/65R34 N/A 8B3Bw
6450 mm (253.9 in.)		 8C1Bw
6040 mm (237.8 in.)		 2X1Cw
5720 mm
(225.2 in.)		 8E0Cw
5720 mm
(225.2 in.)		 8D0Cw
5720 mm
(225.2 in.)		 2Z0Dw
5740 mm
(226 in.)
600/65R28 N/A N/A 8K1Bw
6070 mm (239 in.)		 2X0Cw
5720 mm (225.2 in.)		 N/A 8L0Cw
5720 mm
(225.2 in.)		 2Z0Dw
5740 mm
(226 in.)
600/70R30 N/A N/A 8K2Bw
6500 mm (255.9 in.)		 2X2Cw
6100 mm
(240.2 in.)		 N/A 8L1Cw
6090 mm (239.8 in.)		 2Z1Dw
5740 mm (226 in.)
aTo achieve a 1676 mm (66 In.) row spacing setting, use 1625 mm (64 in.) row spacing and order one 25.4 mm (1 in.) spacer set per side through your John Deere dealer.



OURX935,0000550 -19-10JAN08-2/6

1300 MFWD Axle Front Tire, Fender and Steering Stop Settings
Size 1979 mm
(78 in.)		 2080 mm
(82 in.)		 2182 mm
(86 in.)
16.9R30
R1W		 8F0F
6000 mm
(236.2 in.)		 8G0G
6050 mm
(238.2 in.)		 8H0H
6110 mm (240.6 in.)
420/85R34 8F1F
5770 mm
(227.2 in.)		 8G0G
5460 mm (215 in.)		 8H0H
5510 mm (216.9 in.)
480/70R30 8F0F
6000 mm
(236.2 in.)		 8G0G
6050 mm
(238.2 in.)		 8H0H
6110 mm (240.6 in.)
480/70R34 8F0F
5410 mm (213 in.)		 8G0G
5460 mm (215 in.)		 8H0H
5510 mm (216.9 in.)
540/65R30 8F0Dw
5410 mm (213 in.)		 8G0Ew
5460 mm (215 in.)		 8H0Fw
5510 mm (216.9 in.)
540/65R34 8F0Dw
5410 mm (213 in.)		 8G0Ew
5460 mm (215 in.)		 8H0Fw
5510 mm (216.9 in.)
600/65R28 8N0Dw
5410 mm (213 in.)		 8O0Ew
5460 mm (215 in.)		 8P0Fw
5510 mm (216.9 in.)
600/70R30 8N1Dw
5770 mm
(227.2 in.)		 8O0Ew
5820 mm (229.1 in.)		 8P0Fw
5870 mm (231.1 in.)
To achieve a 1676 mm (66 In.) row spacing setting, use 1625 mm (64 in.) row spacing and order one 25.4 mm (1 in.) spacer set per side through your John Deere dealer.



OURX935,0000550 -19-10JAN08-3/6

1500 MFWD Axle Front Tire, Fender and Steering Stop Settings
Size 1575 mm
(62 in.)		 1676 mm
(66 in.)a		 1780 mm
(70 in.)		 1829 mm
(72 in.)		 1877 mm
(73.9 in.)		 1882 mm
(74.1 in.)		 1956 mm
(77 in.)
420/85R34 N/A 8B3C
5990 mm
(235.8 in.)		 8C2D
5670 mm
(223.2 in.)		 N/A 8E1E
5720 mm
(225.2 in.)		 8D1E
5720 mm
(225.2 in.)		 N/A
480/70R34 N/A 8B3C
6450 mm (253.9 in.)		 8C2D
5670 mm
(223.2 in.)		 2X1D
5670 mm (223.2 in.)		 8E1E
5350 mm (210.6 in.)		 8D1E
5350 mm (210.6 in.)		 2Z0F*
5400 mm
(212.6 in.)
540/65R34 N/A 8B3Bw
6450 mm
(253.9 in.)		 8C2Bw
6040 mm
(237.8 in.)		 2X2Cw
6060 mm
(238.6 in.)		 8E1Cw
5720 mm
(225.2 in.)		 8D1Cw
5720 mm
(225.2 in.)		 2Z0Dw*
5400 mm
(212.6 in.)
540/75R34 N/A N/A N/A N/A N/A N/A N/A
600/70R30 N/A N/A N/A 2X3Cw
6520 mm (256.7 in.)		 N/A 8M3Cw
6090 mm (239.8 in.)		 2Z2Dw*
6120 mm
(240.9 in.)
620/75R30 N/A N/A N/A N/A N/A N/A N/A
aTo achieve a 1676 mm (66 In.) row spacing setting, use 1625 mm (64 in.) row spacing and order one 25.4 mm (1 in.) spacer set per side through your John Deere dealer.



1500 MFWD Axle Front Tire, Fender and Steering Stop Settings
Size 1979 mm
(78 in.)		 2080 mm
(82 in.)		 2182 mm
(86 in.)
420/85R34 8F1F*
5770 mm
(227.2 in.)		 8G1G *
5460 mm (215 in.)		 8H1H *
5510 mm (216.9 in.)
480/70R34 8F0F*
5410 mm (213 in.)		 8G0G*
5460 mm (215 in.)		 8H0H *
5510 mm (216.9 in.)
540/65R34 8F0Dw*
5410 mm (213 in.)		 8G0Ew*
5460 mm (215 in.)		 8H0Fw *
5510 mm (216.9 in.)
540/75R34 N/A 8G3Ew*
6670 mm (262.6 in.)		 8H2Fw *
6260 mm (246.5 in.)
600/70R30 8N1Dw*
5770 mm
(227.2 in.)		 8O1Ew*
5820 mm (229.1 in.)		 8P1Fw *
5870 mm (231.1 in.)
620/75R30 N/A N/A 8P3Fw *
6700 mm (263.8 in.)
To achieve a 1676 mm (66 In.) row spacing setting, use 1625 mm (64 in.) row spacing and order one 25.4 mm (1 in.) spacer set per side through your John Deere dealer.
* Tool Box must be removed from factory installed location.



OURX935,0000550 -19-10JAN08-4/6

Independent Link Suspension Front Tire, Fender and Steering Stop Settings
Size 1575 mm
(62 in.)		 1676 mm
(66 in.)a		 1780 mm
(70 in.)		 1829 mm
(72 in.)		 1877 mm
(73.9 in.)		 1882 mm
(74.1 in.)		 1956 mm
(77 in.)
16.9R30 R1W 8A3B
6310 mm (248.4 in.)		 8B1C
5700 mm (224.4 in.)		 8C0D
5400 mm (212.6 in.)		 N/A 8E0E
5400 mm (212.6 in.)		 8D0E
5400 mm (212.6 in.)		 N/A
420/85R34 8A3B
6310 mm (248.4 in.)		 8B2C
5990 mm (235.8 in.)		 8C1D
5670 mm
(223.2 in.)		 N/A 8E1E
5720 mm
(225.2 in.)		 8D1E
5720 mm
(225.2 in.)		 N/A
480/70R30 8A3B
6310 mm (248.4 in.)		 8B2C
6000 mm (236.2 in.)		 8C1D
5670 mm (223.2 in.)		 N/A 8E0E
5400 mm (212.6 in.)		 8D0E
5400 mm (212.6 in.)		 N/A
480/70R34 N/A 8B3C
6450 mm (253.9 in.)		 8C1D
5670 mm
(223.2 in.)		 2X1D
5670 mm (223.2 in.)		 8E1E
5350 mm (210.6 in.)		 8D1E
5350 mm (210.6 in.)		 2Z0F
5400 mm
(212.6 in.)
540/65R30 N/A 8B2Bw
6000 mm (236.2 in.)		 8C1Bw
5670 mm (223.2 in.)		 2X0Cw
5270 mm (207.5 in.)		 8E0Cw
5400 mm (212.6 in.)		 8D0Cw
5400 mm (212.6 in.)		 2Z0Dw
5400 mm
(212.6 in.)
540/65R34 N/A 8B3Bw
6450 mm (253.9 in.)		 8C2Bw
6040 mm (237.8 in.)		 2X1Cw
6060 mm
(238.6 in.)		 8E0Cw
5720 mm
(225.2 in.)		 8DOCw
5720 mm
(225.2 in.)		 8ZODw
5400 mm
(212.6 in.)
540/75R34 N/A N/A N/A N/A N/A N/A N/A
600/65R28 N/A N/A 8K2Bw
6040 mm (237.8 in.)		 N/A N/A 8L1Cw
5720 mm
(225.2 in.)		 N/A
600/70R30 N/A N/A 8K3Bw
6500 mm (255.9 in.)		 2X2Cw
6520 mm (256.7 in.)		 N/A 8L2Cw
6090 mm (239.8 in.)		 2Z1Dw
6120 mm
(240.9 in.)
620/75R30 N/A N/A N/A N/A N/A N/A N/A
aTo achieve a 1676 mm (66 In.) row spacing setting, use 1625 mm (64 in.) row spacing and order one 25.4 mm (1 in.) spacer set per side through your John Deere dealer.



OURX935,0000550 -19-10JAN08-5/6

Independent Link Suspension Front Tire, Fender and Steering Stop Settings
Size 1979 mm
(78 in.)		 2080 mm
(82 in.)		 2182 mm
(86 in.)
16.9R30 R1W 8F0F
5400 mm (212.6 in.)		 8G0G
5400 mm (212.6 in.)		 8H0H
5400 mm (212.6 in.)
420/85R34 8F1F
5770 mm
(227.2 in.)		 8G1G *
5460 mm (215 in.)		 8H1H *
5510 mm (216.9 in.)
480/70R30 8F0F
5400 mm (212.6 in.)		 8G0G
5400 mm (212.6 in.)		 8H0H
5400 mm (212.6 in.)
480/70R34 8F0F
5410 mm (213 in.)		 8G0G
5460 mm (215 in.)		 8H0H *
5510 mm (216.9 in.)
540/65R30 8F0Dw
5400 mm (212.6 in.)		 8G0Ew
5400 mm (212.6 in.)		 8H0Fw
5400 mm (212.6 in.)
540/65R34 8F0Dw
5410 mm (213 in.)		 8G0Ew
5460 mm (215 in.)		 8H0Fw *
5510 mm (216.9 in.)
540/75R34 8F3Dw
6670 mm (262.6 in.)		 8G3Ew*
6670 mm (262.6 in.)		 8H2Fw *
6260 mm (246.5 in.)
600/65R28 8N0Dw
5770 mm (227.2 in.)		 8O0Ew
5460 mm (215 in.)		 8P0Fw *
5510 mm (216.9 in.)
600/70R30 8N1Dw
5770 mm
(227.2 in.)		 8O1Ew
5820 mm (229.1 in.)		 8P1Fw *
5870 mm (231.1 in.)
620/75R30 N/A 8O3Ew
6670 mm (262.6 in.)		 8P2Fw *
6700 mm (263.8 in.)
To achieve a 1676 mm (66 In.) row spacing setting, use 1625 mm (64 in.) row spacing and order one 25.4 mm (1 in.) spacer set per side through your John Deere dealer.
* Tool Box must be removed from factory installed location.
