Maintaining Optional Fuel Water Separator Filter Element-If Equipped

NOTE: After filter element has been back flushed up to five time, clean filter. Replace filter when light is no longer visible while holding filter up to the light.

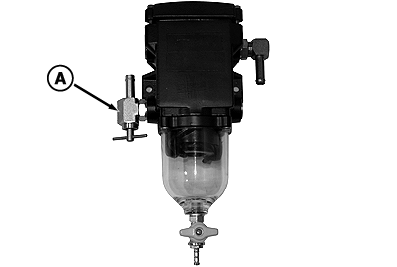

1. Close fuel shut-off valve (A).

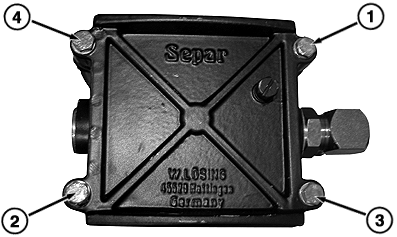

2. Loosen lid screws evenly in sequence shown.


A-Fuel Shut-Off Valve

RXA0084318
RXA0084320

OURX935,0000628 -19-02JAN08-1/2

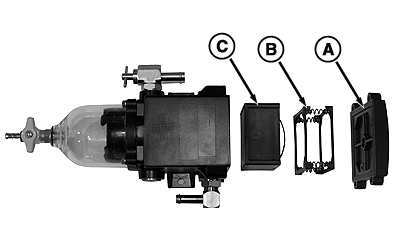

3. Remove lid (A), spring cassette (B), and filter element (C). Save lid and spring cassette.

4. Install new filter element and spring cassette (B) from step 3.

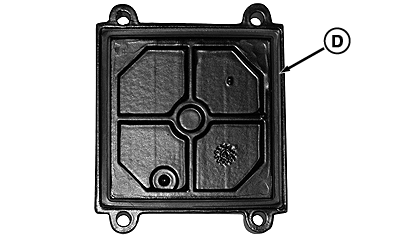

5. Inspect lid gasket (D) condition and replace if necessary.

6. Install lid (A) and tighten in sequence shown.

7. Open fuel shut-off valve.

8. Start and run engine at fast idle for 2 minutes. If engine won't start or dies, see REPLACING FUEL FILTER ELEMENTS in tractor Operator's Manual and follow instructions for priming engine.
