CommandCenter Split Screen - Constant Top-Half Display

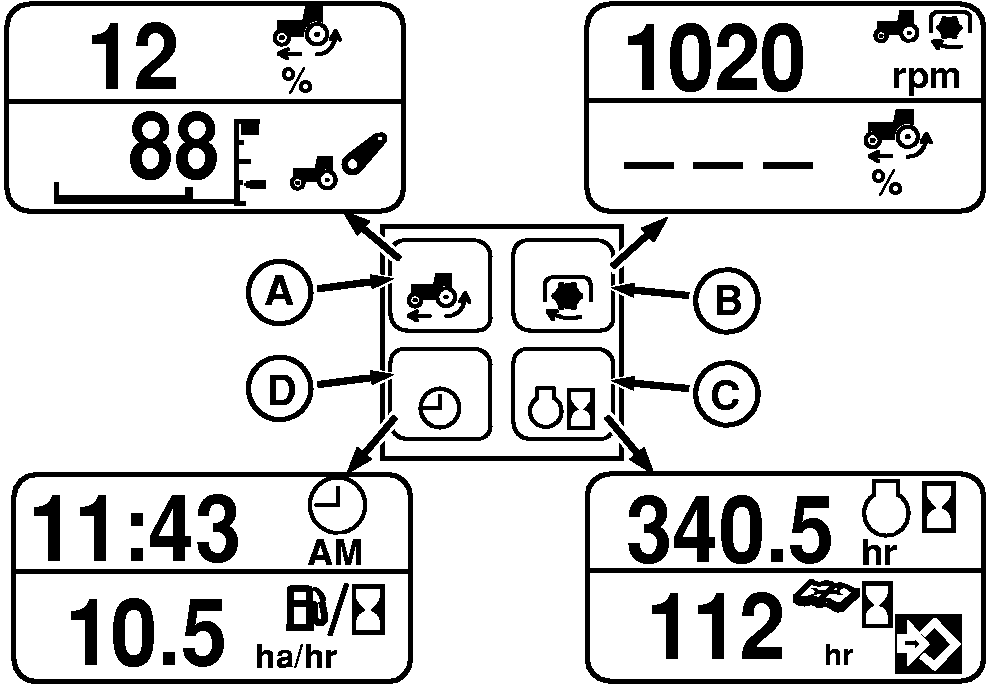

The display is divided into two screens to allow alternative information to be displayed. Information in the top screen is selected by selecting one of the four function switches (A-D) located below the display. Once an option is selected this information remains on the top screen until another option is selected.

CommandCenter Split Screen - Constant Top-Half Display

A-% SLIP:

Displays current wheel slippage as a percent of calculated wheel speed compared to the true ground speed. Tractor must be equipped with a radar. If true ground speed is not available, "---" will be displayed.

NOTE: If display reads something other than zero when traveling on a hard surface where there should be no wheel slip, push and hold touch pad (A) to reset.

B-PTO SPEED: Displays rear PTO rpm.

C-ENGINE HOURS: Displays total accumulated engine hours.

D-CLOCK: Displays current time in hours and minutes. Clock can be set to display in 12-hour or 24-hour format.

A-Percent Slip Switch
B-PTO Speed Switch
C-ENG HOURS Switch
D-CLOCK Switch

OURX935,000062C -19-04AUG06-1/1
