Rear Drive Wheel - Installing

causym CAUTION: Avoid the possibility of personal injury. Never operate tractor with loose wheel bolts.

NOTE: The wheel rim (A) has one tight fit hole smaller than the other holes. One slot fit hole is 180° from the tight fit hole, for improved wheel centering.

Install and hand tighten bolt in the tight fit hole (B).

Install and hand tighten bolt in the slot fit hole (C).

Install and hand tighten remaining bolts.

Tighten all bolts to torque.

Specification

Sleeve Bolts -Final Torque 600 N·m (445 lb-ft)

Tighten all bolts to torque again.

Drive tractor 100 meters (100 yd) and torque bolts.

Tighten again at 3 HOURS , 10 HOURS , and DAILY for the first week of operation.

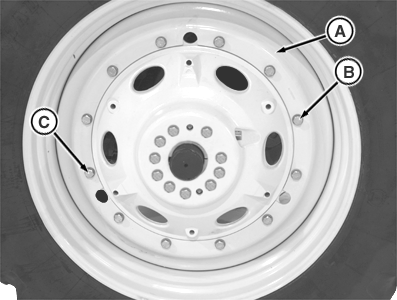

RXA0056891

Heavy Duty Cast Wheel Shown


A-Wheel Rim
B-Tight Fit Hole
C-Slot Fit Hole

OURX935,000069E -19-23NOV07-1/1
