Replacing Front Belt-Line, Cab Roof Front or Rear and Side or Rear Fender Flood Light Bulbs

1. Rotate flood light as necessary, to access backside of light.

2. Belt-line and rear fender flood lights: Remove rubber cover.

3. Disconnect wiring harness plug (A).

4. Rotate bulb (B) counterclockwise approximately 1/4 turn and remove.

5. Install bulb in reverse order of removal.

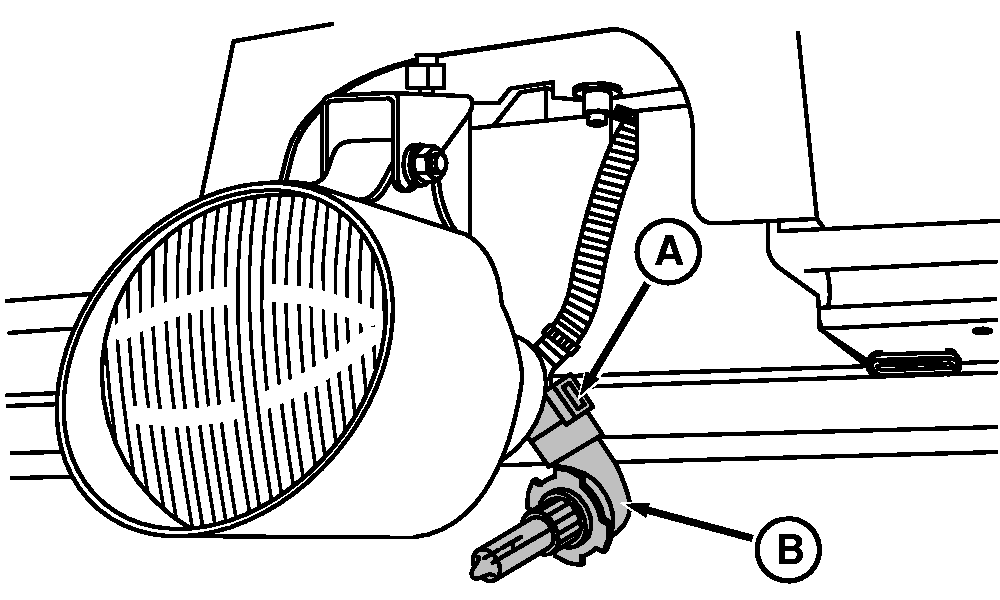

RXA0068500

Rear Cab Roof Flood Light Shown


A-Wiring Harness Plug
B-Bulb

OURX935,0000773 -19-14AUG05-1/1
