Replacing Instrument and Display Illumination Light Bulb

1. Remove screws (A) and light assembly.

2. Rotate retainer (B) counterclockwise approximately 1/4 turn and remove.

3. Pull out light bulb.

4. Install new bulb in reverse order of removal.


A-Screws
B-Bulb Retainer

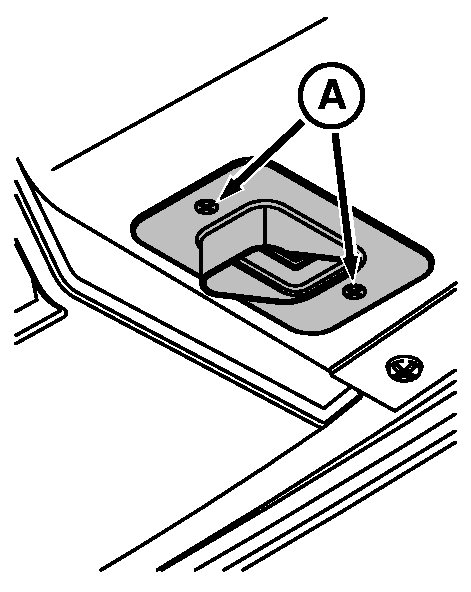

RXA0068512

Illumination Light

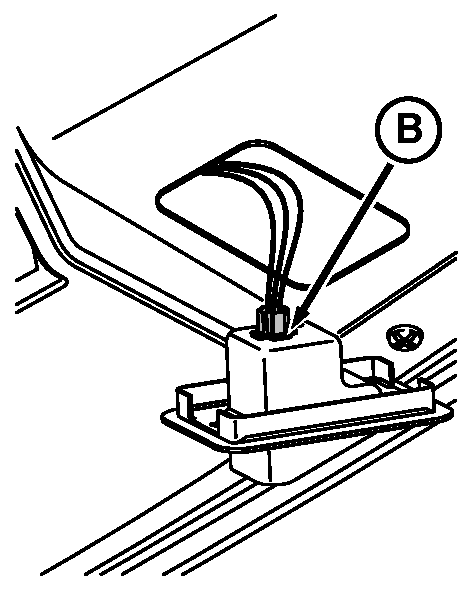

RXA0068513

Rotate Retainer

OURX935,0000776 -19-23APR05-1/1
