Replacing Dome Light Bulb

1. Remove screws (A) and lens cover.

2. Push in and turn counterclockwise to remove light bulb (B).

3. Install new bulb in reverse order of removal.


A-Screws
B-Bulb

RXA0068514

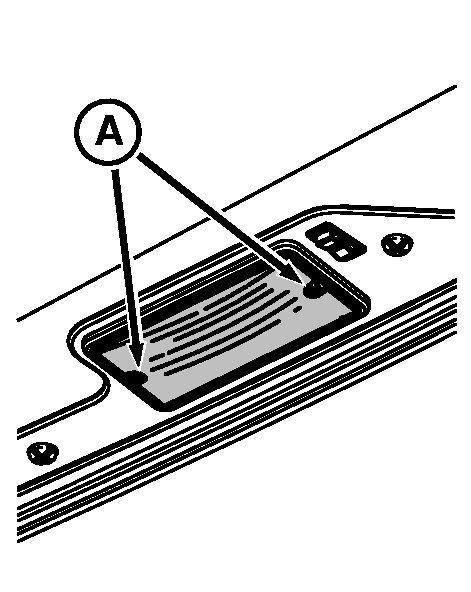

Dome Light

RXA0068515

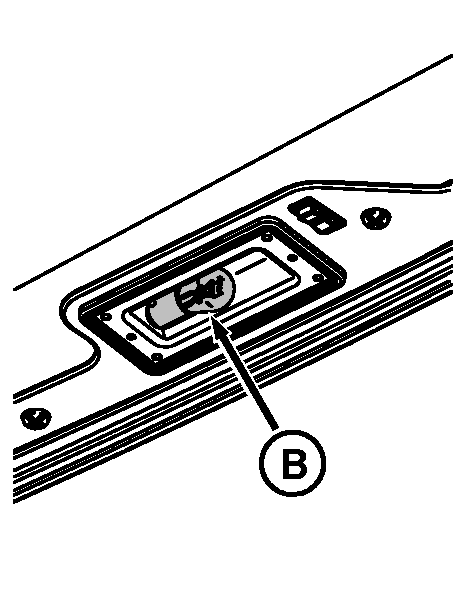

Remove Bulb

OURX935,0000777 -19-23APR05-1/1
