Programming Lights

RXA0080492

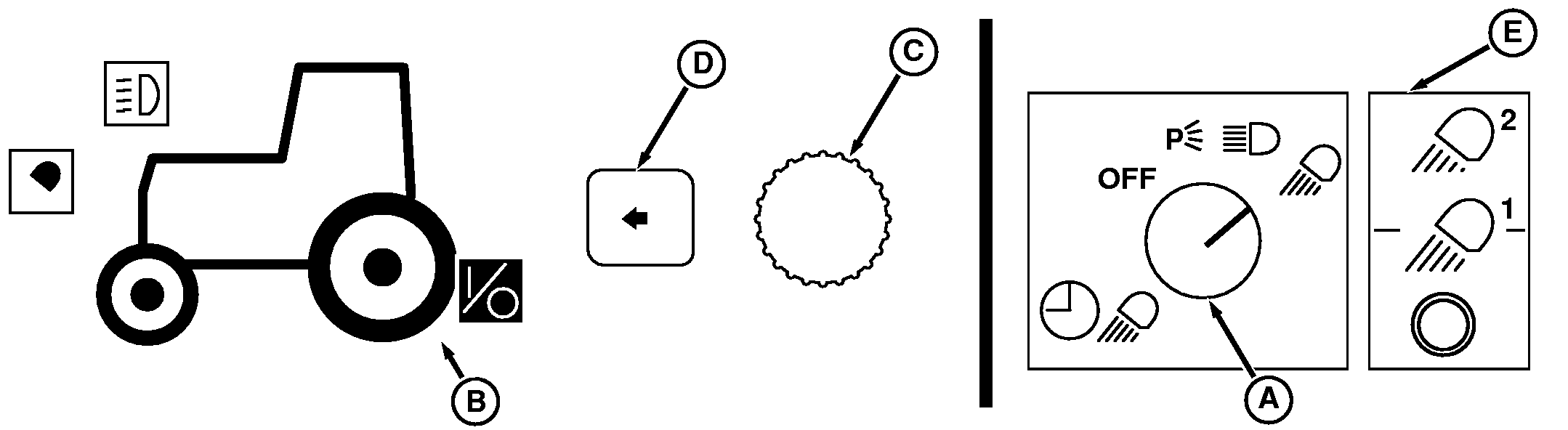

Road Lights

RXA0080491

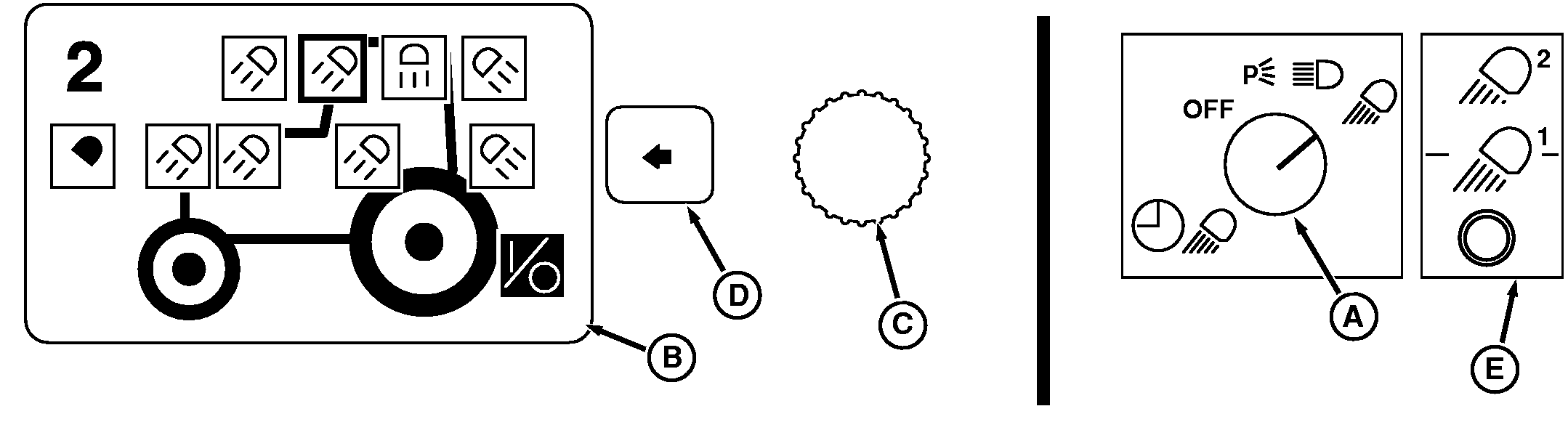

Field 2 Lights with Center Spot Light and Cab Side Field Lights

RXA0080490

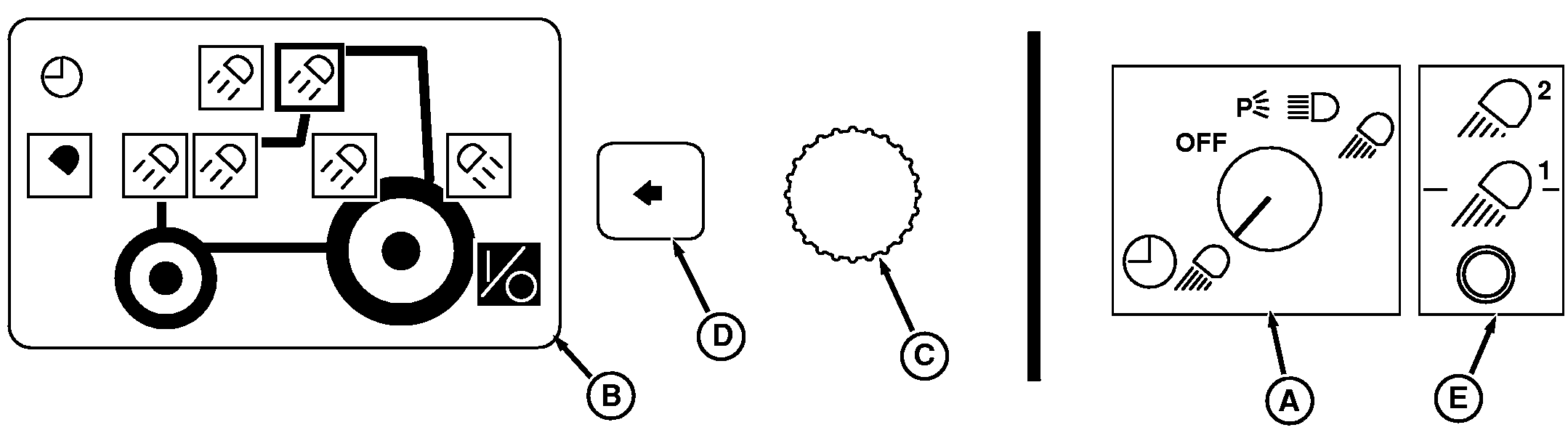

Egress Lighting with Options


A-Light Switch
B-CommandCenter Display


C-Command Dial


D-Select Switch


E-Field Light Switch

Operation of all clear-lens lighting (road lights, field lights and floodlights) is programmable using the Light Switch, Field Light Switch and CommandCenter. See ROAD AND FIELD LIGHT IDENTIFICATION AND COMMANDCENTER INDICATORS for further information on lights and display indicators.

Light display shows for 10 seconds whenever Light Switch and Field Light Switch positions are changed to a programmable setting. If no changes are made, display returns to last screen shown. Light indicators change from black-to-white when programmed ON.

OURX935,0000788 -19-09AUG05-1/2

OFF Position:

In the OFF position, all clear-lens lighting is programmed OFF (all black indicators).

P (Park), Road and Field Positions:

Turn Light Switch (A) to desired position and observe CommandCenter display (B); black lights are OFF, white lights are ON.

NOTE: P (Park) and Road positions are not programmable.

To program field lights, rotate Light Switch to field position, depress Field Light Switch, and observe CommandCenter display. All clear-lens lights are selectable when programming Field 1 or 2 positions.

Rotate Command dial (C) to highlight desired light, then press Select Switch (D) to turn light ON (white indicator) or OFF (black indicator). Changes to ON/OFF settings take place immediately.

Normally one field light position is programmed to operate only certain lights, such as rear facing field lights. Moving dimmer switch to high beam will give a second option to program lights such as all rear facing lights and side mounted roof lights. The other position is used to operate all clear-lens lighting and again moving the dimmer switch will allow for a fourth option for programmable lighting.

Egress (Delayed Shutdown) Position (If Equipped):

Turn light switch knob to Egress (clock) position and observe CommandCenter display.

Programming Egress lighting is the same as Field lighting with all clear-lens lights selectable. Only operator selected clear-lens lights will come ON when switch knob is moved to Egress (Delayed Shutdown) position. Moving dimmer switch to high beam will give a second option to program lights.

OURX935,0000788 -19-09AUG05-2/2
