Operating Turn Signals and High/Low Beam

NOTE: When turn signal is activated, a short audible chirping sound will be heard.

Push turn signal lever (A) up for a right turn, or pull down for a left turn. Return lever immediately to center position. Turn signal light continues to flash for additional 50 m (164 ft) of tractor travel, then switches off automatically.

CAUTION: Avoid injury caused by accidental collision with another vehicle. Always comply with traffic regulations when driving tractor on a road. Dim headlights to low-beam for oncoming vehicles.

Push turn signal lever forward to activate high beam headlights; high beam indicator will come on. Pull lever into center position to operate low beam. Pull lever toward you and release to flash-to-pass high beams.

Dim headlights for oncoming vehicles.

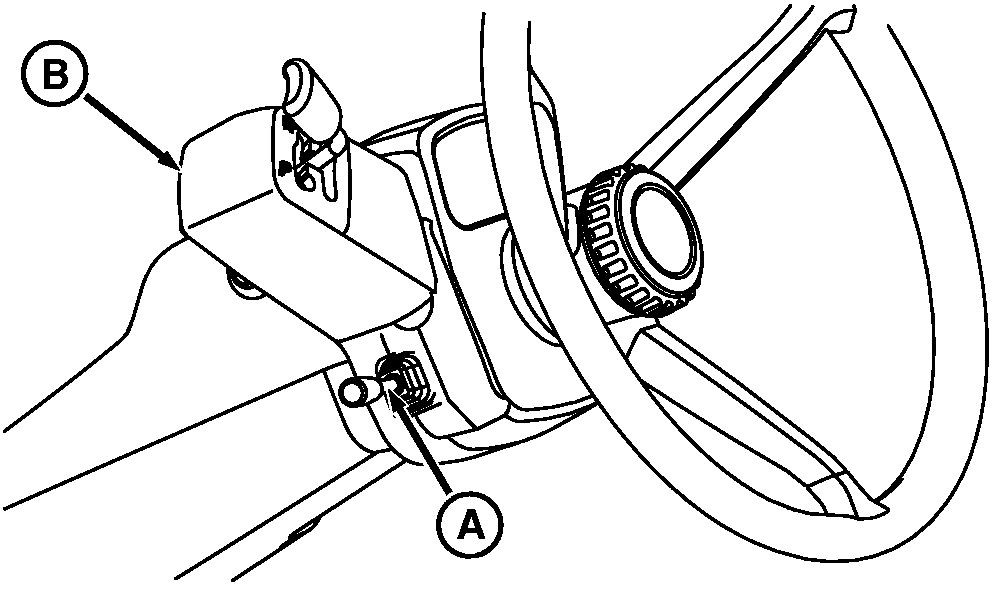

A-Turn Signal Lever
B-Left-Hand Reverser (If equipped)

OURX935,000078A -19-18AUG05-1/1
