Cleaning Hydraulic Oil Suction Screen

1. Place drain pans under both ends of oil suction tube.

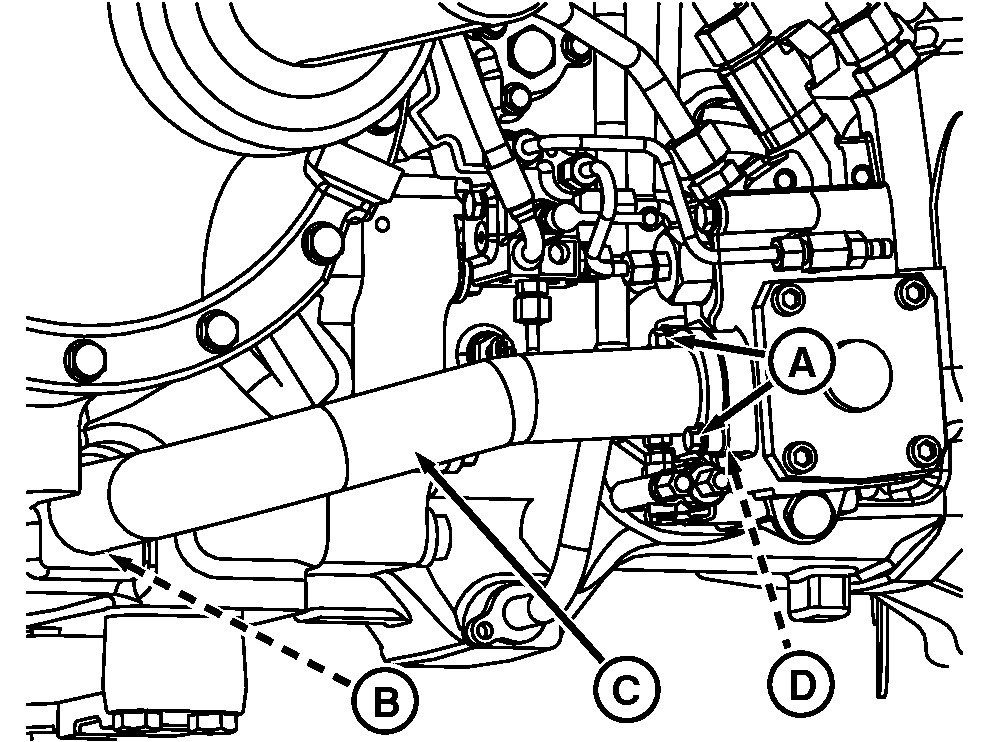

   RXA0082965-UN-04AUG05

   A - Cap Screws

   B - Suction Screen

   C - Tube

   D - O-Ring

---




2. Remove cap screws (A) and tube (C) on differential case front left side.

3. Remove suction screen (B) and wash carefully in solvent, then blow dry screen with compressed air.

4. Reinstall suction screen.

5. Install tube making sure O-ring (D) is correctly positioned.

6. Dispose of any oil that may have leaked into catch pans in accordance with local laws and ordinances.

7. Proceed to Replacing Transmission/Hydraulic Filters And Refill Transmission/Hydraulic Oil.
