Using Correct Center Link Position

RXA0085781-UN-10JAN06

Use Correct Hitch Category

RXA0097299-UN-19FEB08

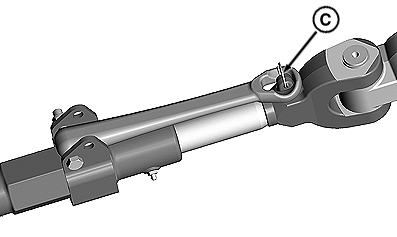

Recessed Retaining Mount Center Link

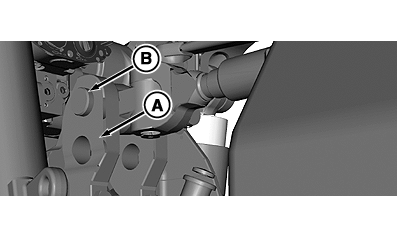

A - Lower Hole

B - Upper Hole

C - Recessed Retaining Mount

IMPORTANT: Excessive power can damage an implement, and a too large implement can damage the tractor.

This tractor requires center link with recessed retaining mount (C) to prevent interference with SCV valve stack. Using a center link without a recessed retaining mount may result in damage to SCV stack.

NOTE: Upper hole offers greater lift capacity. Lower hole offers greater ground clearance.

Attach center link to lower hole (A) for most standard implements. Use upper hole (B) when implements requiring higher lift capacity are used. See implement operator's manual for recommendations.

Refer to lift capacities in Specifications Section.
