Primary Navigational Tools

NOTE:

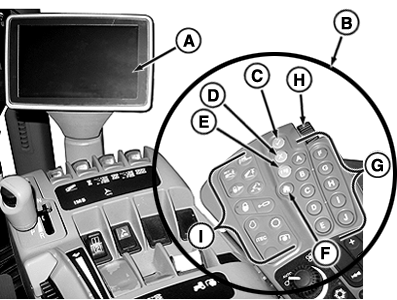

RXA0099737-UN-14JUL10

CommandARM™ With CommandArm Controls And CommandCenter

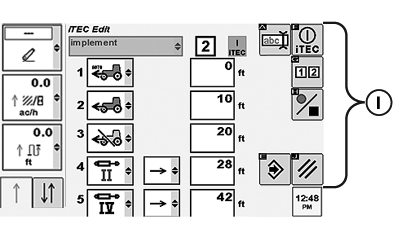

RXA0104278-UN-11AUG09

Softkeys

The CommandCenter (A) attached to CommandArm allows operator to view selected pages required to operate tractor.

There are two methods of navigating through CommandCenter pages:

1. Rotate CommandArm Controls (B) thumb wheel (H) to a specific box or softkey (I) and press Confirm button (C) to direct tractor to perform a function. Press Cancel button (D) to void a command.
2. NOTE: Softkeys, “A” through “J” (G) correlate to softkeys (I) on CommandCenter pages.
   Use softkeys to quickly navigate through system to a page, then use thumb wheel to specific portion of a page.

There are a variety of input fields and buttons that allow the operator to navigate through pages to direct tractor functions

Primary CommandArm Controls navigational tools listed below:

A—CommandCenter allows operator to monitor and receive immediate visual feed back on all monitored functions associated with tractor operations.

B—CommandArm Controls is a key pad made up of buttons, shortcut keys and softkeys allowing operator to manage tractor functions.

C—Confirm Button used to select highlighted item.

D—Cancel Button cancels or deselects action previously selected.

E—Menu Button returns operator to the CommandCenter Menu.

F—Home Button returns operator to home page.

G—Softkey Buttons activate Softkeys

H—Thumb Wheel allows operator to perform specific functions such as changing information in input boxes. Rotating thumb wheel forward raises input box values. Rotating thumb wheel rearward lowers input box values.

I––Softkeys allows operator quick access to a specific page or curser placement on page.
