Shortcut Buttons
RXA0104070-UN-24JUL09
Shortcut Buttons

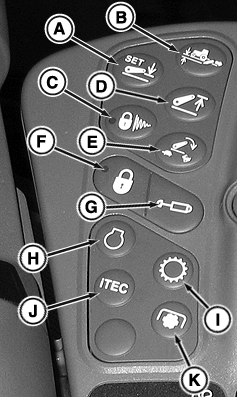

Listed below are CommandArm Controls Shortcut buttons that allow operator to go directly to a specific task.
- A—Hitch Lower Limit
- B—Hitch Load Depth
- C—Hitch Transport Lock/Hitch Dampening
- D—Hitch Upper Limit
- E—Hitch Drop Rate
- F—SCV Lock
- G—SCV
- H—Engine
- I—Transmission
- J—iTEC™
- K—PTO
|
iTEC is a trademark of Deere & Company |
OURX935,000011C-19-20101115 |
