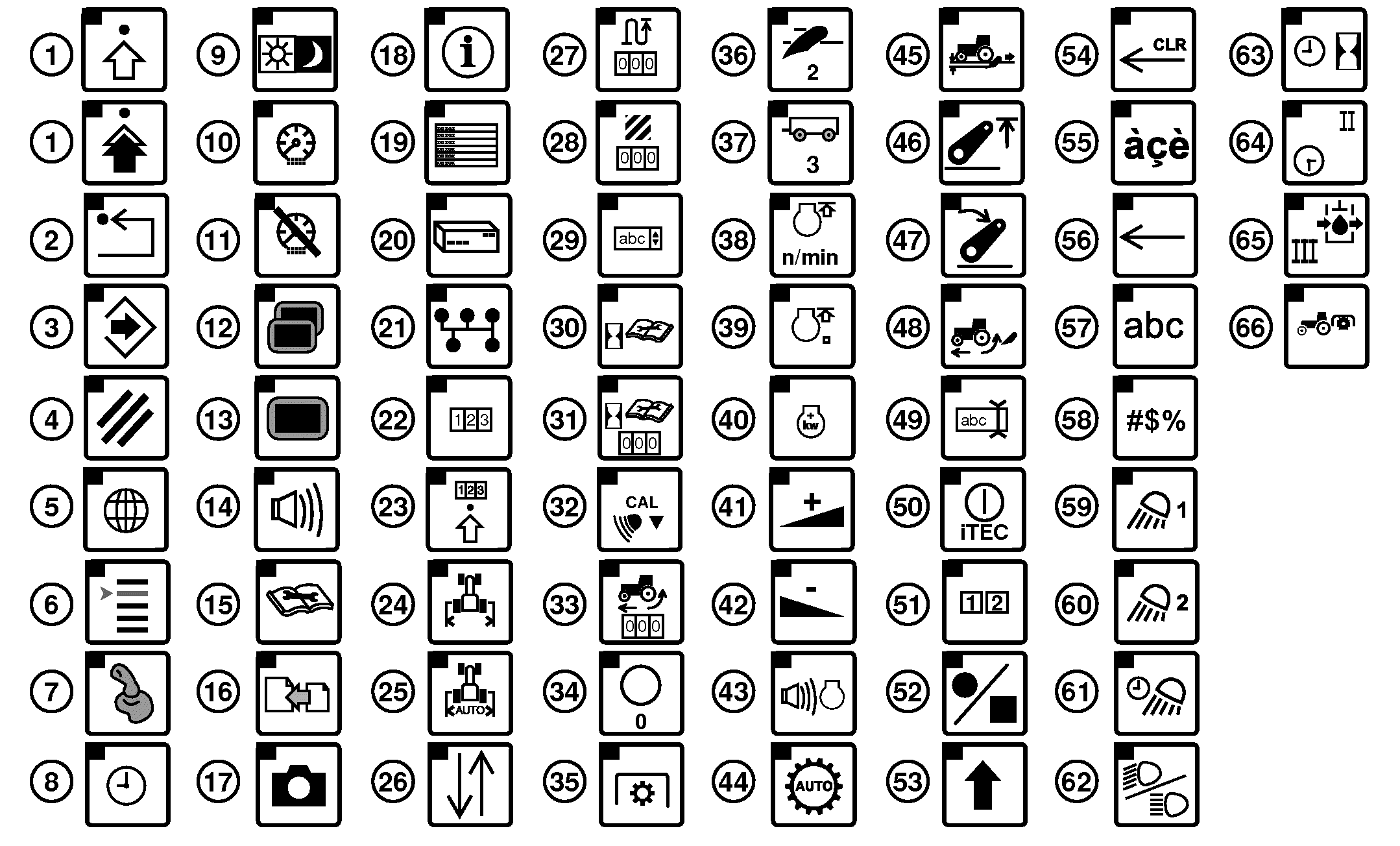

CommandCenter ™ Right Region Softkeys

RXA0104066-UN-24JUL09

CommandCenter™ softkeys

1 - Advanced Setting ¹

2 - Back ¹

3 - Save/Enter¹

4 - Cancel ¹

5 - Regional Settings—Display

6 - High Light Color—Display

7 - Auxiliary Control—Display

8 - Date/Time—Display

9 - Day/Night Setting—Display

10 - Adjust Brightness—Display

11 - Dim Mode—Display

12 - Multiple Display—Display

13 - Main—Display

14 - Adjust Volume—Display

15 - Diagnostics

16 - Reprogramming — Message Center

17 - Transfer Debug Files— Message Center

18 - Information — Message Center

19 - Diagnostic Addresses — Message Center

20 - Electronic Control Unit — Message Center

21 - Bus Information — Message Center

22 - Performance Monitor Main

23 - Performance Monitor Settings

24 - Implement Width

25 - Implement Width Auto

26 - Area Counter Status

27 - Reset Distance Counter

28 - Reset Area Counter

29 - Area Counter Control Source

30 - Service Alarm Interval

31 - Reset Hours Since

32 - Calibrate Radar

33 - Zero Slip

34 - IVT™/AutoPowr™ Auto Mode Off

35 - IVT/AutoPowr Auto Mode 1

36 - IVT/AutoPowr Auto Mode 2

37 - IVT/AutoPowr Auto Mode 3

38 - FieldCruise™ Settings

39 - FieldCruise ON/OFF

40 - Intelligent Power Management

41 - Increase— Radio

42 - Decrease—Radio

43 - Volume Compensation—Radio

44 - Automatic Power Shift

45 - Load Depth—Hitch

46 - Upper Limit—Hitch

47 - Drop Rate—Hitch

48 - Hitch Slip—Hitch

49 - Toggle —iTEC

50 - iTEC™ON/OFF

51 - Sequence—iTEC

52 - Start/Stop Record Sequence—iTEC

53 - Upper/Lower Case Toggle—iTEC

54 - Clear Editing Box — iTEC

55 - Special Character — iTEC

56 - Back Space — iTEC

57 - Standard Alphabet

58 - Numbers — iTEC

59 - Field Position 1 — Lights

60 - Field Position 2 — Lights

61 - Egress Indicator — Lights

62 - High/Low Beam — Lights

63 - Egress Delay — Lights

64 - Detent Time — SCV ²

65 - Flow Rate — SCV ²

66 - Rear PTO Engagement
