Operating Front Windshield Wiper and Washer
RXA0098437-UN-22DEC08
RXA0100929-UN-06MAR09

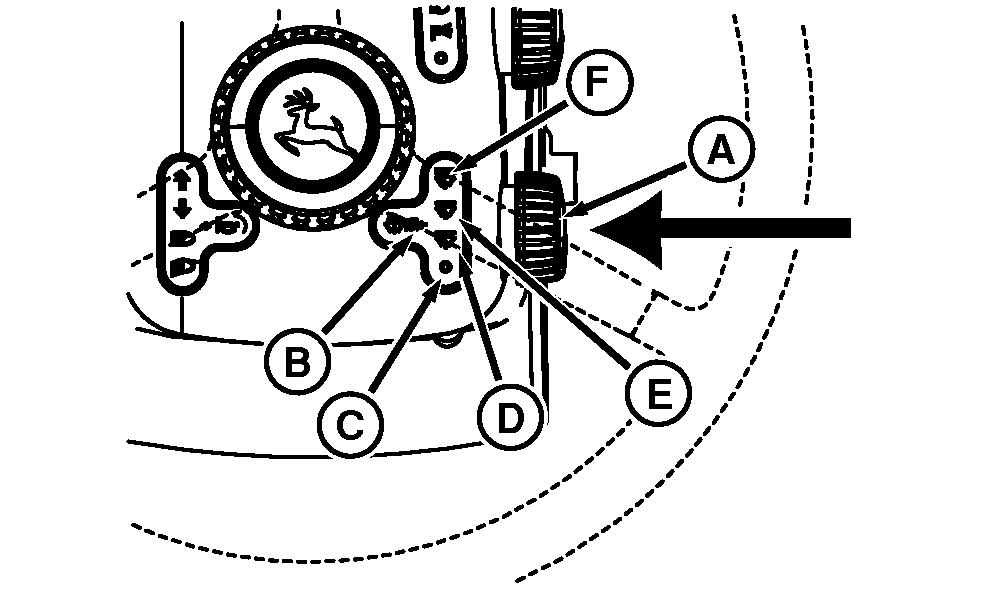

A - Windshield Wiper/Washer Knob
B - Washer Icon
C - Off
D - Intermittent Speed
E - Slow Speed
F - Fast Speed

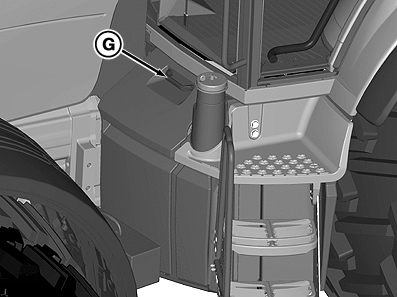

G - Battery Box Cover
Wiper/washer knob (A) has four positions:- OFF
- Intermittent Operation
- Slow Speed
- Fast Speed
Push knob in to operate front windshield washer.
Fill reservoir with non-freezing windshield washer fluid. Reservoir is behind battery box cover (G).
|
OURX935,0000121-19-20090311 |
