Setting System Time
NOTE:

RXA0098156-UN-07NOV08
CommandARM Menu Button

RXA0103929-UN-24JUL09

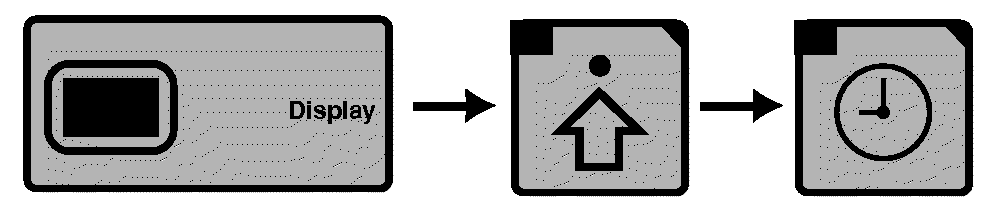

Display → Advance Settings → Date/Time

RXA0103682-UN-24JUL09

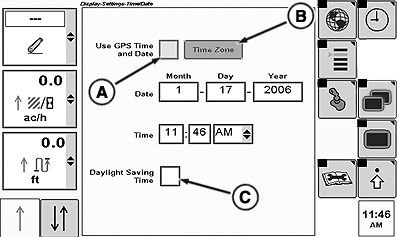

Display Settings Time/Date Page
A - GPS Time And Date
B - Time Zone Box
C - Daylight Savings Time
Enter the current time at your location and your time zone
and local offset will be calculated.
-
Select Menu button.
-
Select Display.
-
Select Advanced Settings softkey.
-
Select Date/Time softkey.
-
If GPS Time and Date check box (A) is checked, the following
two lines of information cannot be changed.
If GPS Time and Date check box (A) is left unchecked;
-
Select and place appropriate time in Time Zone box (B).
|
Argentina -2
|
Croatia +1
|
Russia
|
|
Austria +1
|
Denmark +1
|
Moscow +3
|
|
Australia
|
Germany +1
|
Samara +4
|
|
Brisbane +10
|
Estonia +2
|
Orenburg +5
|
|
Adelaide +10
|
France 0
|
Omsk +6
|
|
Perth + 9
|
Finland +2
|
Krasnoyarsk +7
|
|
Melbourne +11
|
Greece +2
|
Switzerland +1
|
|
Bulgaria +2
|
Iceland 0
|
Slovakia +1
|
|
Brazil
|
Italy +1
|
South Africa +2
|
|
Sao Paulo -3
|
Hungary +1
|
Sweden +1
|
|
Mato Grosso -4
|
Central America + 5
|
United Kingdom 0
|
|
Canada
|
Latvia +2
|
Ukraine +2
|
|
Vancouver -7
|
Lithuania +2
|
Turkey +2
|
|
Calgary -6
|
Netherlands +1
|
USA
|
|
Winnipeg -5
|
Norway +1
|
Los Angeles - 7
|
|
Toronto -4
|
Poland +1
|
Denver - 6
|
|
Halifax -3
|
Portugal 0
|
Chicago -5
|
|
Czech Republic +1
|
Romania +2
|
Atlanta -4
|
-
Select month.
-
Select day.
-
Select year.
-
Select hour.
-
Select minute.
-
Select either AM or PM.
-
In Daylight Saving Time check box (C), place check if daylight
saving time is used in your country/region.
|
CommandARM is a trademark of Deere & Company
|
OURX935,0000124-19-20101104
|
|
