Viewing Basic Diagnostic Readings

RXA0098156
RXA0098156-UN-07NOV08

CommandARM™ Menu Button

RXA0103915
RXA0103915-UN-14JUL10

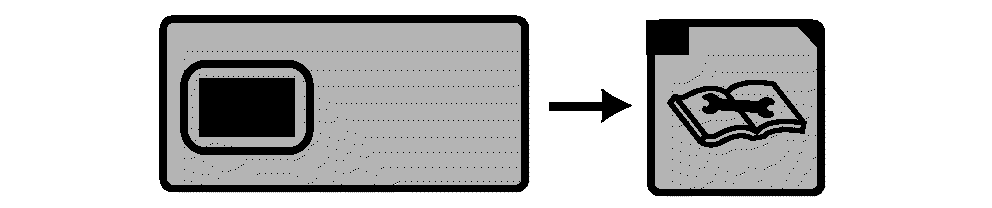

Display → Diagnostics

RXA0103974
RXA0103974-UN-17JUL09

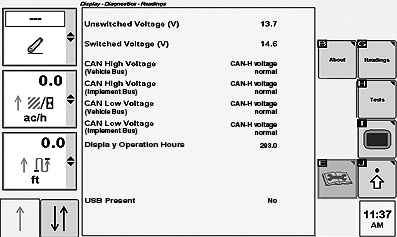

Display Diagnostics readings Page

Basic display diagnostics such as operating voltage, and CAN bus status can be found on the Diagnostics Readings Page.

This information maybe requested by your John Deere™ dealer to aid diagnostics.

  1. Select Menu button.

  2. Select Display.

  3. Select Diagnostics softkey.

  4. System diagnostics are located on Display Settings Readings page.

CommandARM is a trademark of Deere & Company
John Deere is a trademark of Deere & Company

OURX935,0000125-19-20101104
