Message Center

RXA0098156
RXA0098156-UN-07NOV08

CommandARM™ Menu Button

RXA0099746
RXA0099746-UN-14JUL10

Message Center

RXA0103926
RXA0103926-UN-27JUL09

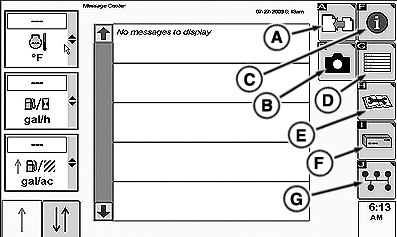

Message Center Page

Message Center is used to access detailed diagnostic information and to manually initiate re-programming sessions.

Message Center can also display detailed diagnostic information such as Control Unit Information and CAN Bus Information, used by your John Deere™ Dealer for advanced troubleshooting.

Softkeys are listed below:

  • A—Message Center Reprogramming Page
  • B—Transfer Debug Files
  • C—Messages
  • D—Diagnostic Addresses
  • E—Trouble Codes
  • F—Control Unit Information
  • G— Bus Information

CommandARM is a trademark of Deere & Company
John Deere is a trademark of Deere & Company

OURX935,0000126-19-20101104
