Setting Service Interval

RXA0098156-UN-07NOV08

CommandARM™ Menu Button

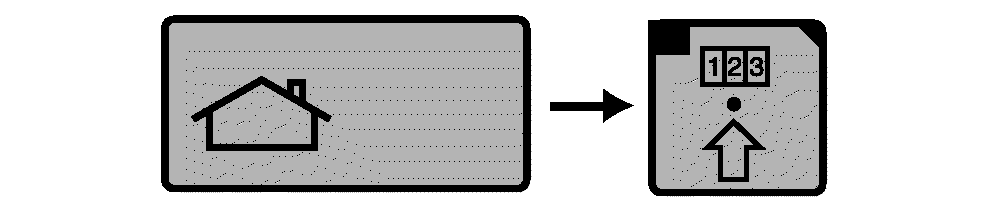

RXA0103931-UN-24JUL09

Home → Performance Monitor Settings

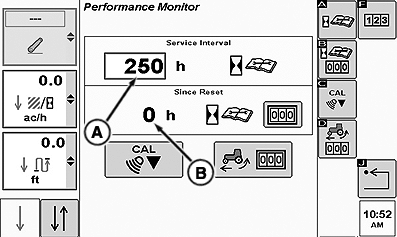

RXA0103980-UN-17JUL09

Performance Monitor Page

A - Service Alarm Interval Box

B - Reset Hours Since Service Box

Service Interval: Alarm interval is adjustable between 0 and 1000 hours, in 10-hour increments. When hours of operation reaches setting, service alarm will sound with a corresponding message appearing on CommandCenter.

After service is performed, Hours-Since-Service display should be reset to zero.

1. Select Menu button.

2. Select Home.

3. Select Performance Monitor Settings softkey.

4. At Performance Monitor page using thumb wheel, scroll to Service Alarm Interval box (A).

5. Press Confirm button.

6. Rotate thumb wheel forward to increase or rearward to decrease hour setting displayed.

7. When desired entry is displayed, press Confirm button.

   NOTE: Reset Hours Since Service button must be held for 3 seconds before hours will zero.

8. Using thumb wheel, scroll to Reset Hours Since Service Box (B) and select Time Since Last Reset button to reset time.
