Calibrating Dual Beam Radar

RXA0098156
RXA0098156-UN-07NOV08

CommandARM™ Menu Button

RXA0103987
RXA0103987-UN-17JUL09

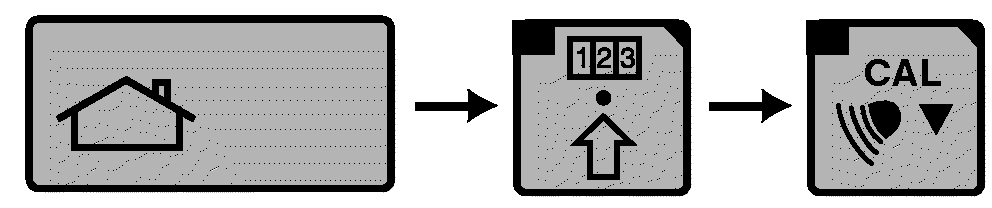

Home → Performance Monitor Settings → Calibrate Radar

RXA0104309
RXA0104309-UN-11AUG09

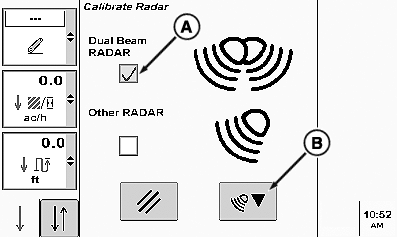

Calibrate Radar Page

A - Dual Beam Radar Check Box.

B - Calibrate Box

  1. Select Menu button.

  2. Select Home.

  3. Select Performance Monitor softkey.

  4. Select Calibration Softkey.

  5. Place check in Dual Beam Radar check box (A).

  6. Select Calibrate (B).

CommandARM is a trademark of Deere & Company

OURX935,000012F-19-20101104
