CommandCenter™ Menu

RXA0098156-UN-07NOV08

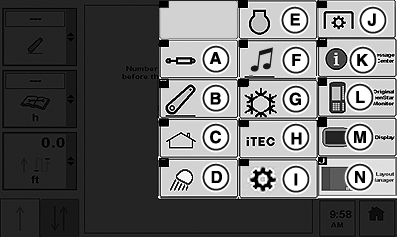

CommandArm Controls Menu Button

RXA0102059-UN-09APR09

CommandCenter™ Menu

At the CommandArm Controls press Menu Button. Depending on tractor configuration, the number and order of displayed icons may vary. From the CommandCenter Menu operator can display any main page available. A brief description of each is listed below.

• A—SCV: Adjust any of up to six SCVs (See Section 60)
• B—Hitch: Adjust hitch. (See Section 50)
• C—Home: Tractor home page.
• D—Lights: Adjust lighting. (See Section 20)
• E—Engine: Adjust FieldCruise™ setting or engine rpm. (See Section 40)
• F— Radio: Adjust premium radio only. (See Section 25)
• G—ClimaTrak:™ Adjust ClimaTrak settings. (See Section 25)
• H—iTEC: ™ Adjust iTEC functions. (See Section 45)
• I—Transmission: Adjust either PST (See Section 41) or IVT (Infinitely Variable Transmission)™/AutoPowr™ Settings (See Section 42) depending on tractor.
• J—PTO: Adjust PTO speed. (See Section 70)
• K— Message Center: Manages Message Center. (See Section 16)
• L—Original GreenStar: ™Adjust GreenStar components. (See Section 25)
• M—Display: Adjust Display functions. (See Section 16)
• N—Layout Manager: Adjust Layout Manager functions. (See Section 16)
