CommandCenter™ Left Region

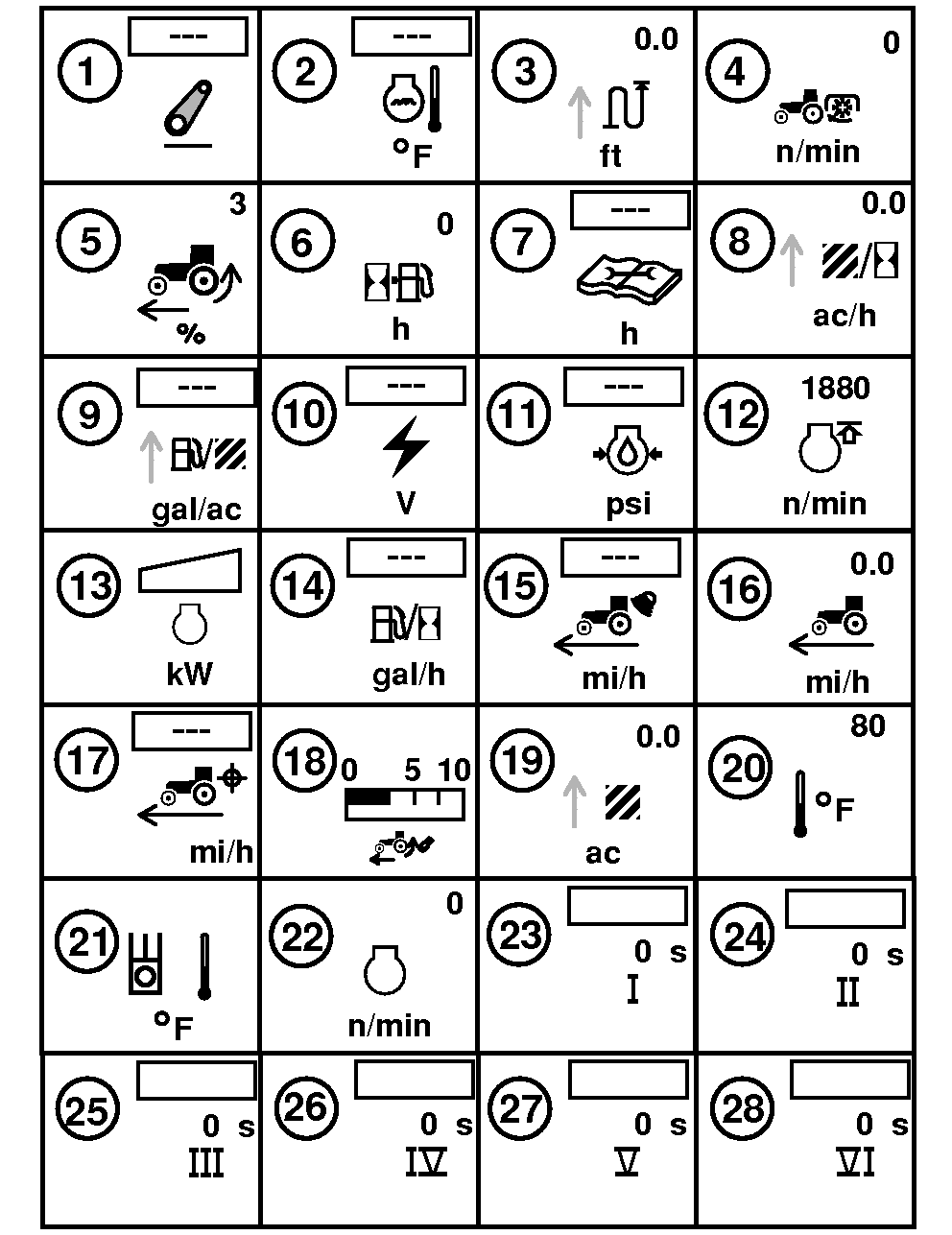

CommandCenter™ Left Region Boxes and their meanings are listed below;

RXA0098405-UN-09MAR09

Listing Of Left Region Boxes

1—Rear Hitch Position - Displays current rear hitch position.

2—Engine Coolant Temp - Engine coolant Temperature in °C or °F.

3—Distance Counter- Accumulated distance the tractor has traveled displayed in meters or feet.

4—Rear PTO Speed - Displays rear PTO speed in rpm.

5—% Slip - (Requires Radar) Displays current wheel slippage as a percent of ground speed compared to the true ground speed.

6—Fuel Remaining-Estimated time until fuel tank is empty.

7—Hours Since Service - Hours since the last service interval.

8—Area Per Hour - Area covered per hour. A number based on current implement width and speed traveled over time.

9—Fuel Consumption Per Area The amount of fuel used is accumulated over time based on the last area counter reset.

10—System Volts - Supply system voltage.

11—Engine Oil Pressure - Engine oil pressure in kPa or psi.

12—FieldCruise™Set engine Speed in maximum rpm.

13—Power Display- Engine power using a bar graph display.

14—Fuel Consumption Per Hour - Displays Liters (Gallons) consumed per hour.

15—True Ground Speed Ground speed as measured by radar or GPS if equipped.

16—Wheel (Ground) Speed - Calibrated ground speed as measured at the axle.

17—Set Speed - (IVT (Infinitely Variable Transmission) ™/AutoPowr ™ Only)

18—Hitch Slip Hitch Slip displayed.

19—Total Area Covered - Total area covered displayed in hectares or acres.

20—Ambient Temperature Air Temperature outside tractor.

21—Hydraulic Temperature Hydraulic oil Temperature.

22—Engine RPM Engine speed in revolutions per minute.

23—28 (SCV I Through SCV VI respectively) Displays set flow rate, current flow rate, and detent time on SCV identified.
