Hitch Set-up and Use (Quick Reference)

RXA0099818-UN-24NOV08

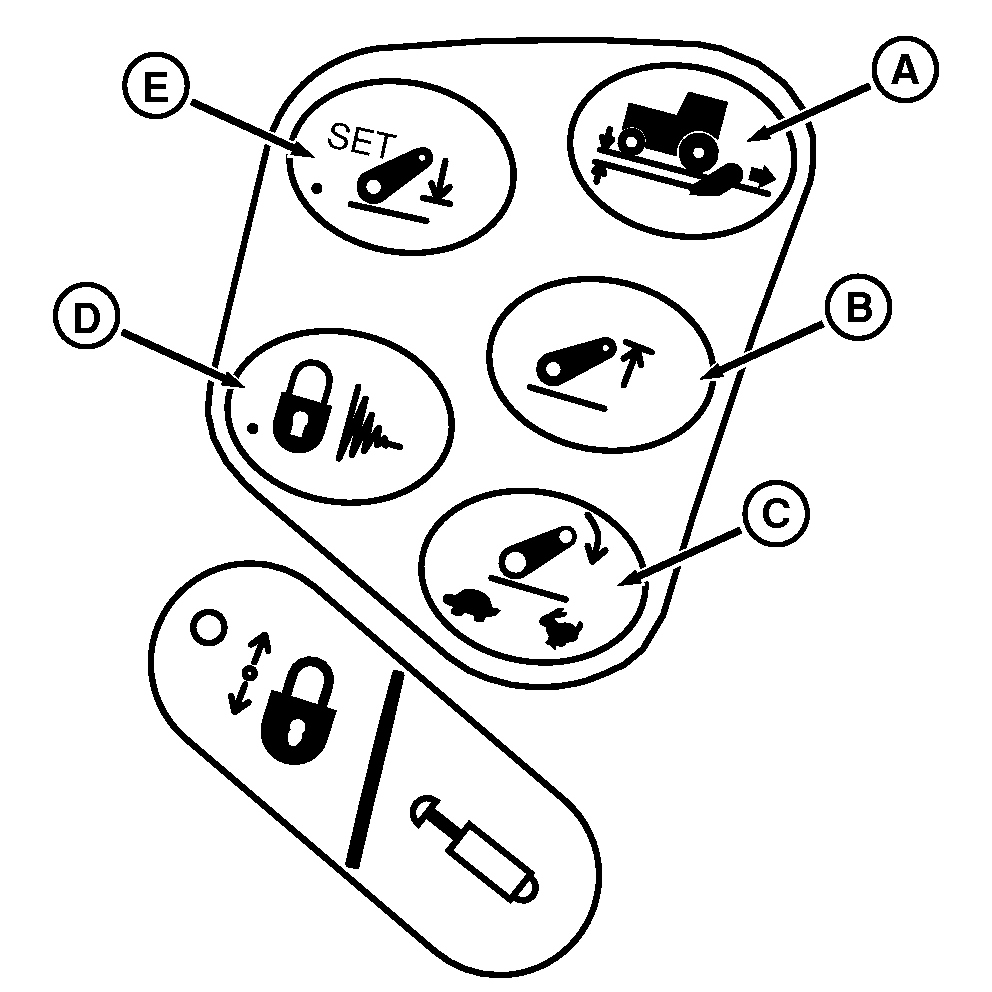

Shortcut Buttons

RXA0101379-UN-07APR09

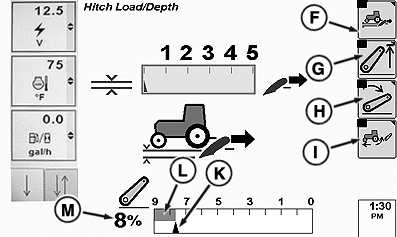

Softkeys

RXA0101053-UN-19MAR09

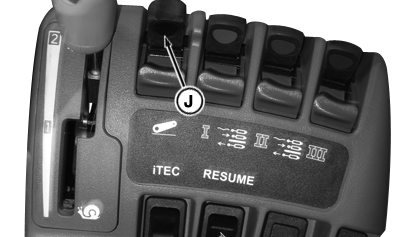

Hitch Lever

A - Load Depth Shortcut Button

B - Upper Limit Shortcut Button

C - Drop Rate Shortcut Button

D - Transport Lock/Dampening Button

E - Depth Set Button

F - Load Depth Softkey

G - Upper Limit Softkey

H - Drop Rate Softkey

I - Hitch Slip Softkey

J - Hitch Command Lever

K - Commanded Depth Indicator

L - Stored Depth Indication

M - Hitch Position Value

Select adjustment to display by pressing required shortcut button (A, B, C, or E). Use thumb wheel to change adjustment setting.

Set Operating Depth

• Lower implement to desired operating depth using Hitch Command lever (J)
• Press Depth Set button (E) to save operating depth.

Turn at End

• At end of field, pull lever into raise detent and release. Hitch will raise to upper height limit.
• After turnaround, push lever into lower detent and release. Hitch will lower to saved depth setting.

Hitch command information appears in lower portion of hitch pages. Commanded depth is represented by commanded depth indicator (K). Stored depth setting is represented by stored depth indication. Pressing depth Set button (E) will move bar to align with commanded depth indicator (K). Hitch position value (M) represents actual hitch position. When hitch is completely down, the hitch position value is 0%. When hitch is completely up, the hitch position value is 100%.
