Adjusting Hitch Drop Rate

IMPORTANT: Excessive drop speed may cause injury or machine damage. Fully lowering implement should take at least two seconds.

  1. Press drop rate shortcut button (A).

    RXA0101489
    RXA0101489-UN-02APR09

    RXA0101381
    RXA0101381-UN-07APR09

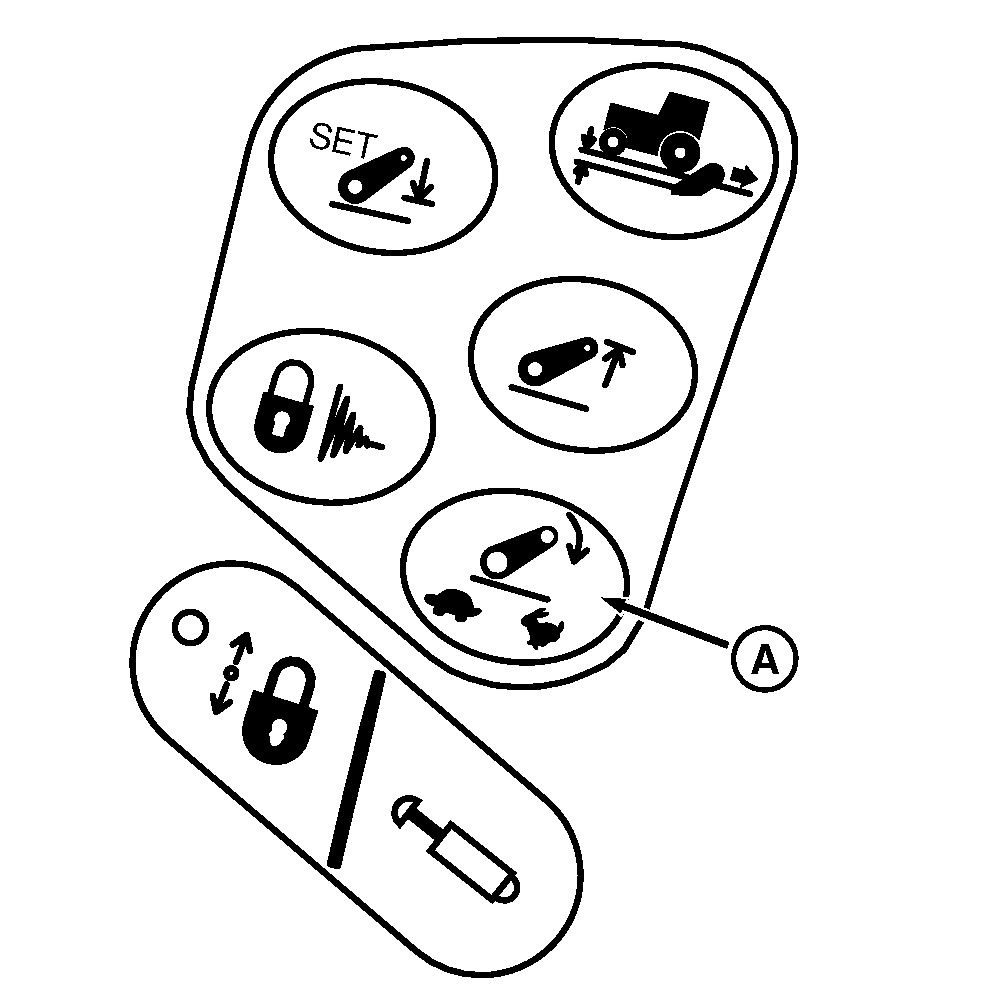

    A - Hitch Drop Rate Shortcut Button

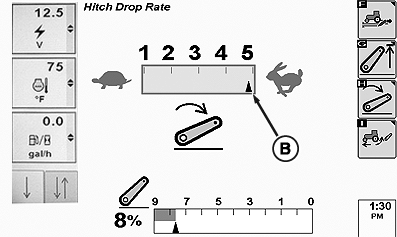

    B - Hitch Drop Rate Setting Indicator


  2. Observe display. Drop rate setting is represented by indictor (B).

    NOTE: Changes to rate of drop setting take place immediately.

  3. Rotate thumb wheel to adjust drop rate and observe drop rate setting indicator (B).

OURX935,0000137-19-20101104
