CommandArm™
RXA0099785-UN-19NOV08

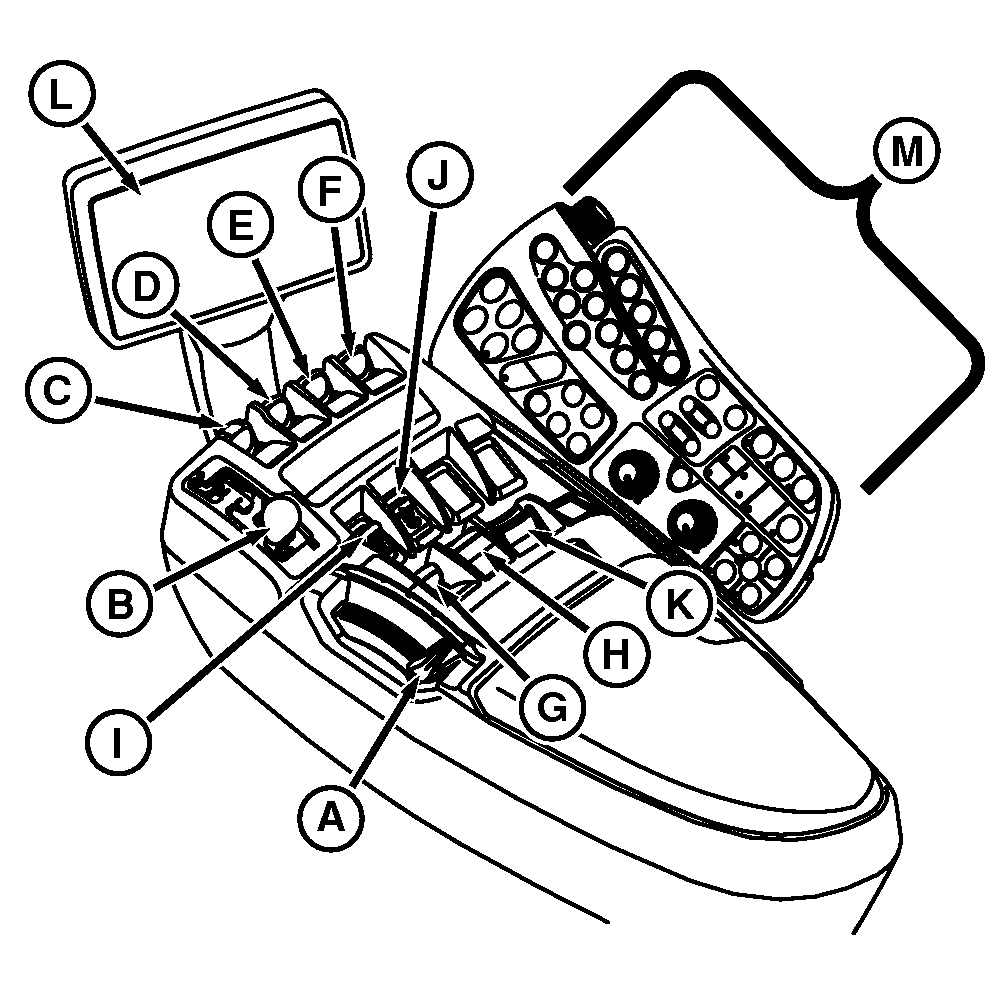

PST CommandARM™ Controls
RXA0099786-UN-19NOV08

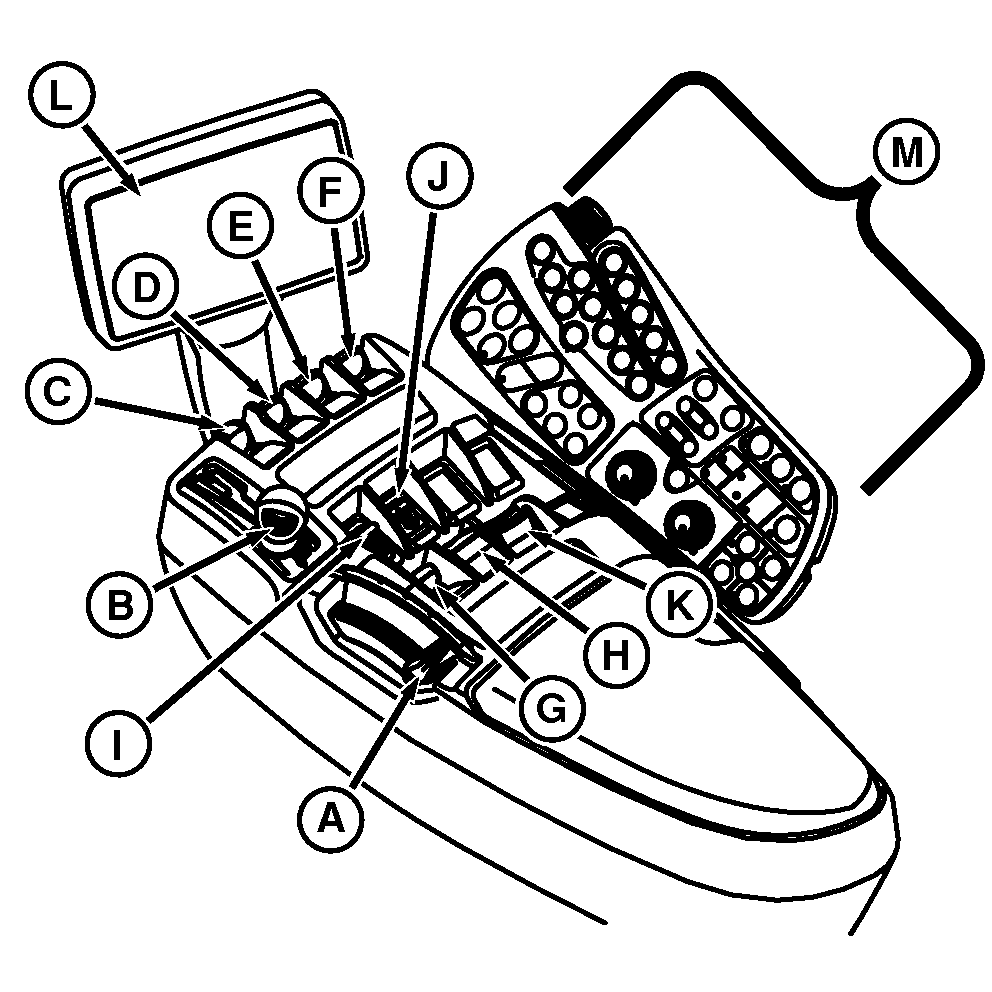

IVT (Infinitely Variable Transmission)™ COMMANDARM Controls
A - Engine Speed Control/Hand Throttle
B - Speed Control Lever 1 IVT (Infinitely Variable Transmission)™/Shift Lever2
C - Hitch Command Lever
D - SCV I Control Lever
E - SCV II Control Lever
F - SCV III Control Lever
G - SCV IV Control Lever
H - SCV V Control Lever
I - iTEC Sequence Switch
J - AutoTrac™Resume Switch
K - Rear PTO Switch
L - CommandCenter™
M - CommandARM™ Controls
|
CommandARM is a trademark of Deere & Company IVT (Infinitely Variable Transmission) is a trademark of Deere & Company AutoTrac is a trademark of Deere & Company CommandCenter is a trademark of Deere & Company 1 For IVT Equipped Tractors 2 For PST Equipped Tractors |
OURX935,000013B-19-20101108 |
