CommandArm™ Controls

RXA0099690-UN-31OCT08

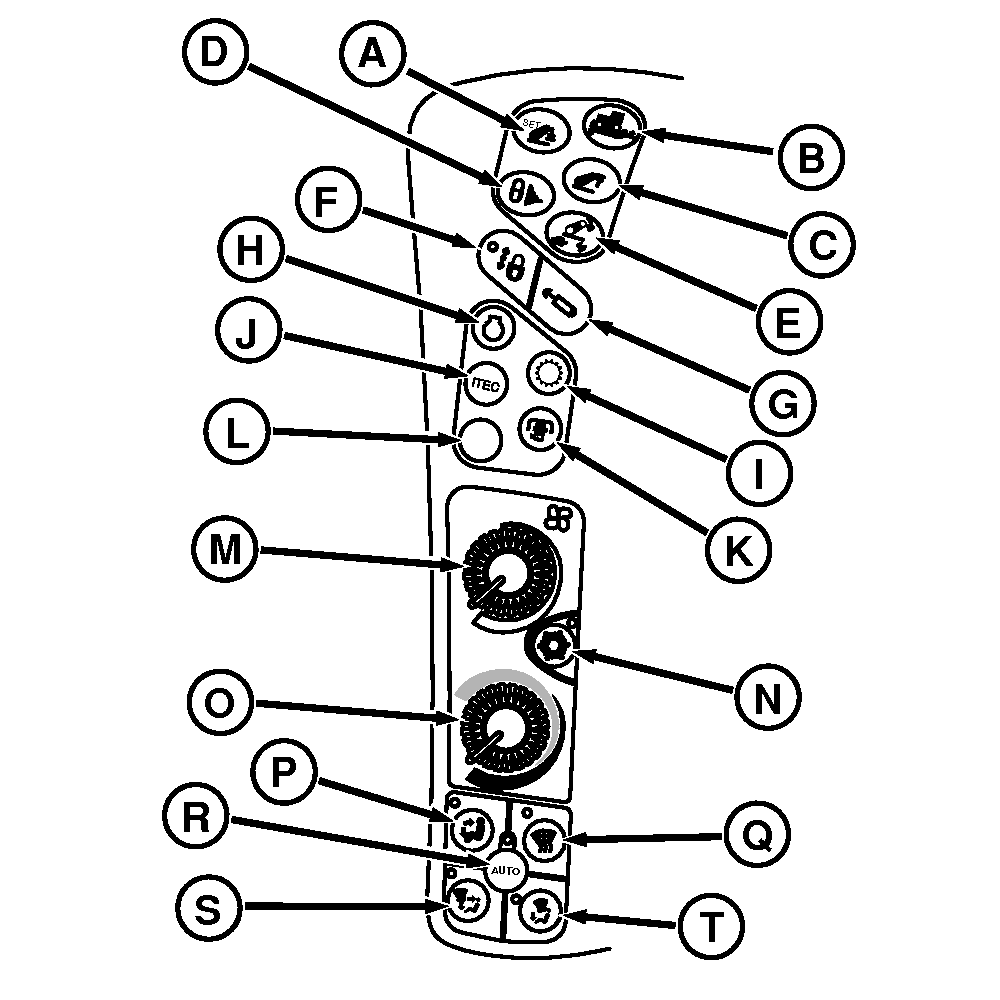

CommandARM™ Controls —Left Side

A - Hitch Lower Limit

B - Load Depth

C - Hitch Upper Limit

D - Transport Lock

E - Hitch Rate Of Drop

F - Transport Lock—SCV

G - SCV

H - Engine Settings

I - Transmission Settings

J - ITEC

K - Rear PTO

L - Not Used

M - Fan Speed *

N - Air Conditioner Button *

O - Temperature Knob *

P - Cab And Floor *

Q - Defrost *

R - AUTO *

S - Defrost, Cab And Floor *

T - Windshield And Floor *

Controls indicated with an asterisk (*) are installed only on ClimaTrak™ equipped tractors.

RXA0099150-UN-25SEP08

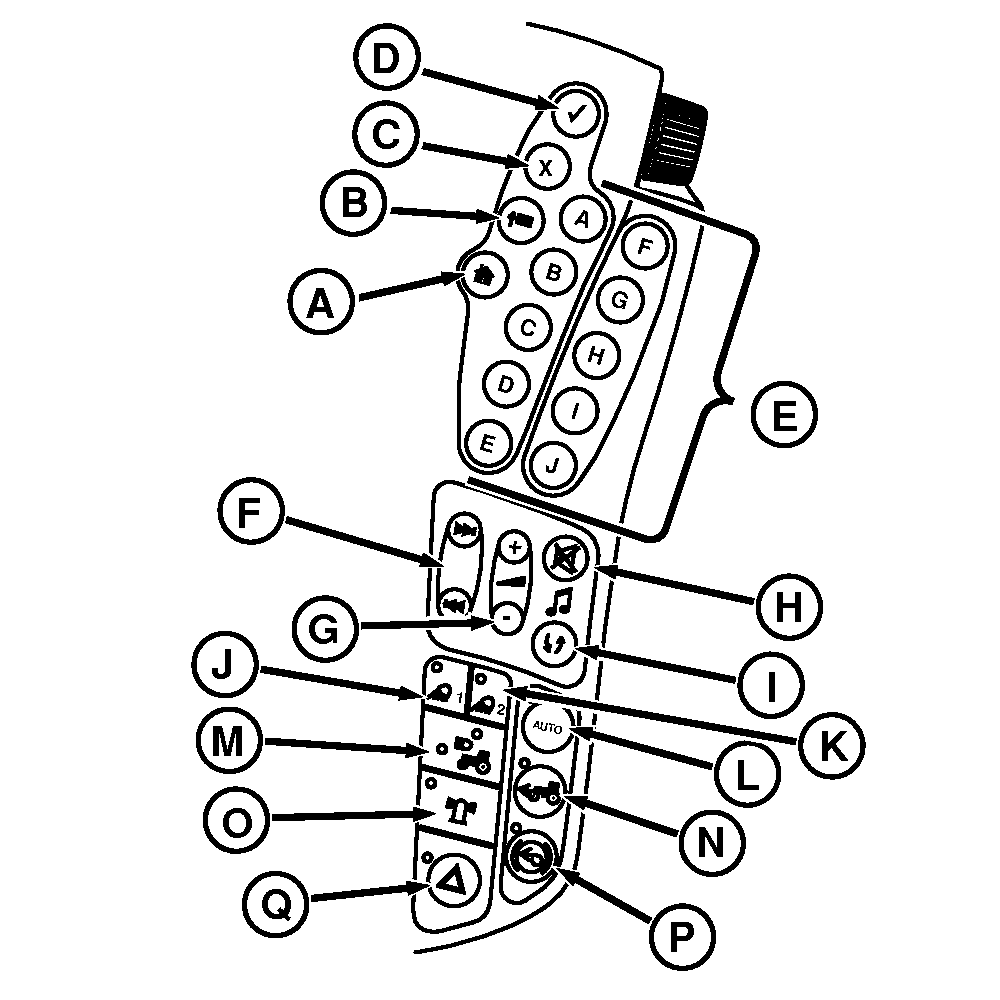

CommandArm Controls—Right Side

A - Home Button

B - Menu Button

C - Cancel Button

D - Confirm Button

E - Softkeys

F - Radio Frequency Button

G - Radio Volume Button

H - Radio Mute

I - Radio Source Button

J - Field Lights 1 Button

K - Field Lights 2 Button

L - AUTO

M - Road/Loader Lights

N - MFWD

O - Beacon

P - Brake Assist

Q - Emergency Flashers
