Using Enabling Mode (Come Home)

RXA0099453
RXA0099453-UN-23DEC08

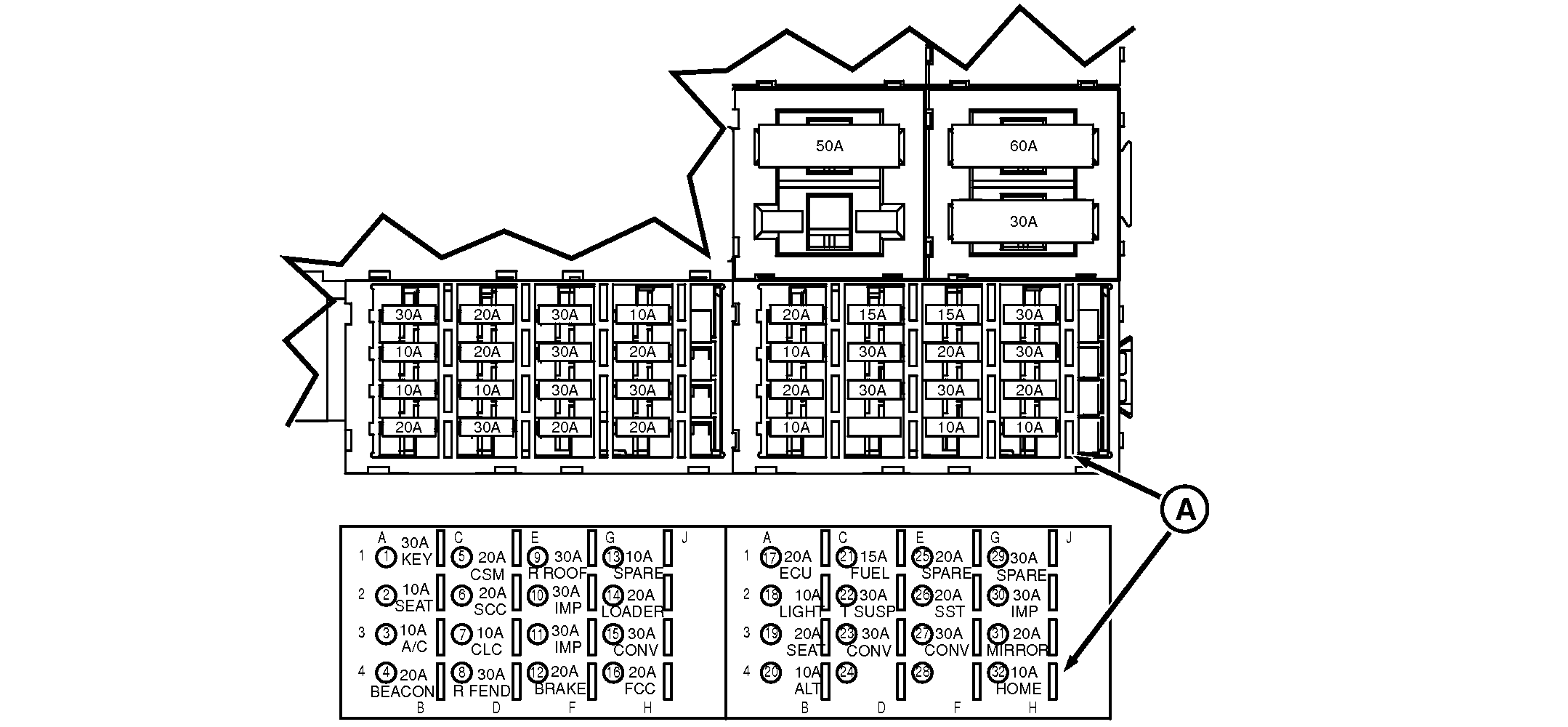

Come Home Mode

A - Fuse # 32

Enabling mode allows tractor to be operated at a maximum of 8 km/h (5 mph) in forward position and 3 km/h (1.8 mph) in reverse at full throttle if certain transmission malfunctions occur.

NOTE: AutoClutch and IVT (Infinitely Variable Transmission)™/AutoPowr™ selector features will not operate when transmission is in Enabling Mode.

  1. Remove fuse # 32 (A) and retain.
  2. Start tractor.
  3. Depress clutch pedal.
  4. Select Forward or Reverse direction.
  5. Release clutch pedal to put tractor in motion.

IVT (Infinitely Variable Transmission) is a trademark of Deere & Company
AutoPowr is a trademark of Deere & Company

OURX935,0000146-19-20101108
