Programmable Lights

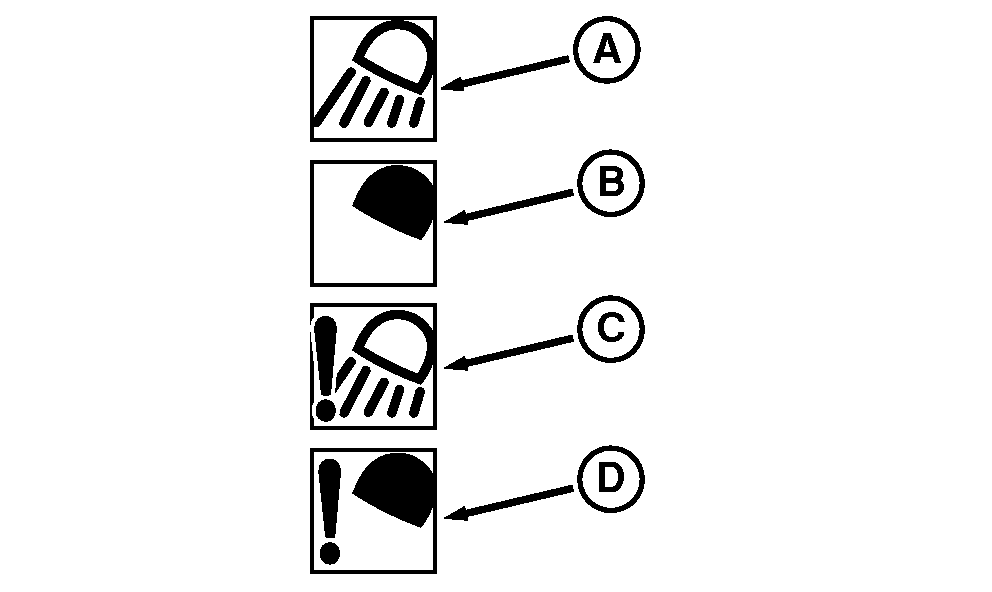

Programmable lighting may appear in 4 states as indicted below;

RXA0101485-UN-02APR09

A - Light Programmed ON

B - Light Programmed OFF

C - Light Programmed ON, Faulted

D - Light Programmed OFF, Faulted

RXA0098075-UN-18DEC08

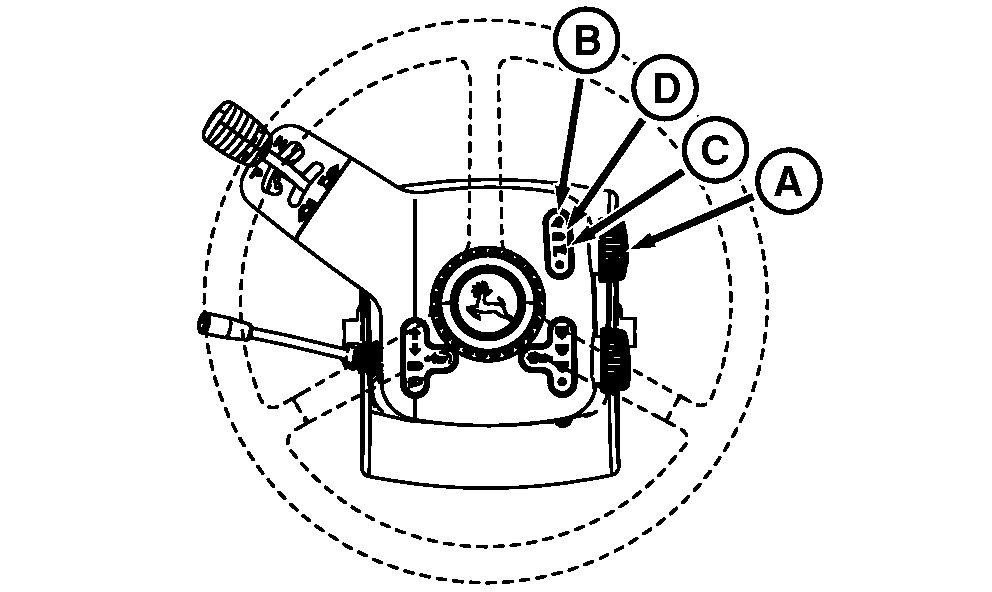

Steering Wheel

RXA0104740-UN-22SEP09

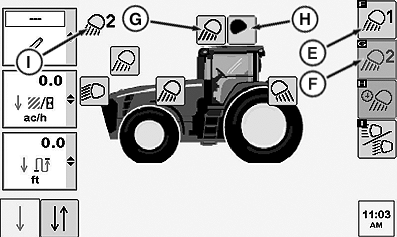

COMMANDCENTER Lighting Page

A - Selector Knob

B - Field Lights

C - Parking Lights

D - Road Lights

E - Field Position 1 Softkey

F - Field Position 2 Softkey

G - Light On

H - Light Off

I - Field Position Indicator

Operation of all clear-lens lighting Field Lights is programmable using the light switches on the steering wheel and CommandArm Controls pages. See Road And Field Light Identification With CommandCenter™Indicators for further information on lights and display indicators.

Light display shows for 10 seconds whenever light switch is changed to a programmable setting. If no changes are made, display returns to last screen shown. Light indicators change from black-to-white when programmed ON.

In the OFF position, all clear-lens lighting is programmed OFF (all black indicators).Changes to ON/OFF settings take place immediately.

Turn selector knob (A) to desired position and observe COMMANDCENTER page. Selecting field position 1 softkey (E), controls field position 1 1ights. Selecting field position 2 softkey (F), controls field position 2 lights. Selecting individual lights toggle lights on (G) or off (H). Field position indicator (I) identifies current field position. Each field position can be programmed to operate selected clear lens lights.

While operating in the field pressing field lights 1 (A) or field lights 2 (B) will display a quick view (3 seconds) of the appropriate lights programmed on before defaulting back to previous page displayed on COMMANDCENTER .

RXA0103507-UN-15JUN09

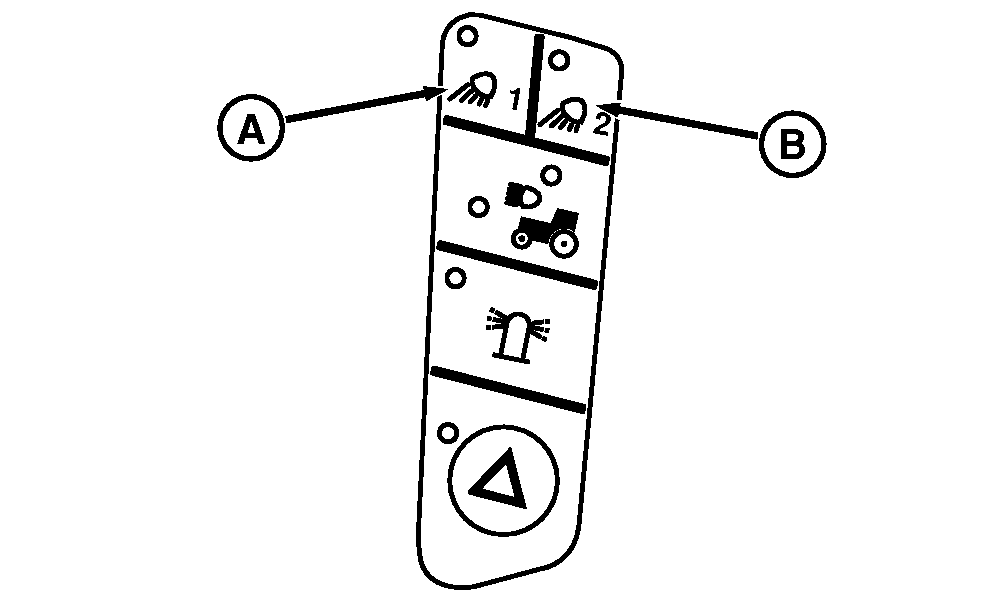

CommandArm Controls Field Lights Buttons

RXA0100801-UN-25FEB09

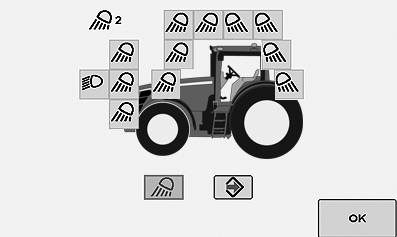

Lighting Quick Look

A - Field Lights 1

B - Field Lights 2

Attached diagram for programmable lights placement and identification.

RXA0103170-UN-03JUN09

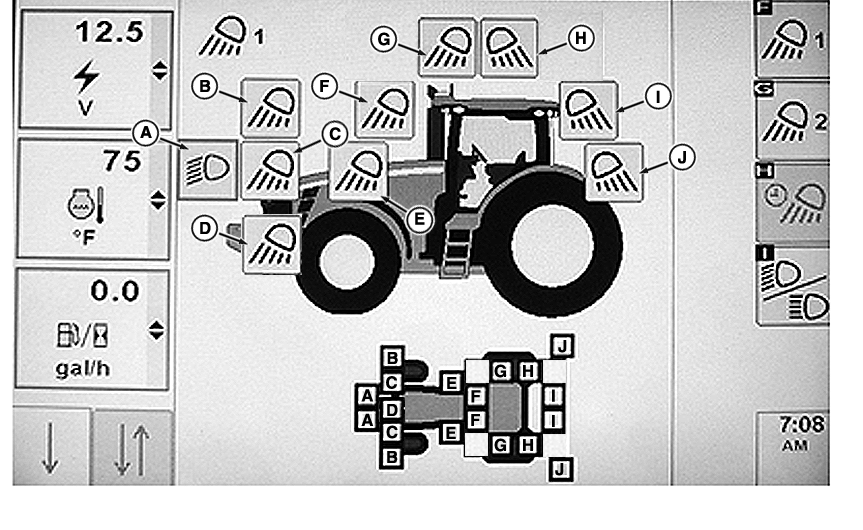

COMMANDCENTER LIGHTING PAGE

A - Headlights

B - Front Outer Lights

C - Front Inner Lights

D - Center Spot Light (Optional)

E - Mid-Body Flood

F - Front Inner Roof (Optional Flood)

G - Front Side Roof

H - Rear Side Roof

I - Rear Inner Roof

J - Rear Fender Flood
