Transmission-Hydraulic System Warm-Up

RXA0100362-UN-03FEB09

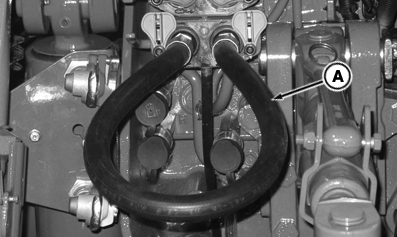

Install Jumper Hose into SCV Coupler

RXA0101604-UN-01APR09

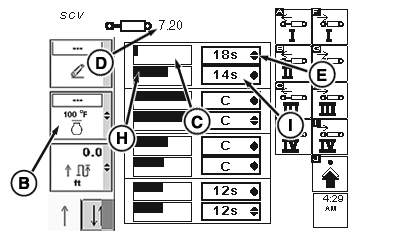

Secondary Display

RXA0099479-UN-14OCT08

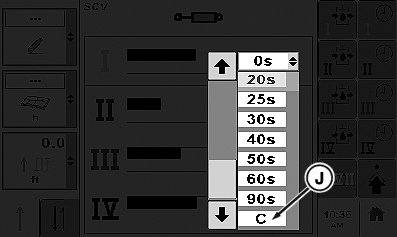

Drop Down Menu

RXA0099914-UN-08DEC08

CommandARM

A - Jumper Hose

B - Hydraulic Temperature Screen

C - SCV I Extend Detent Flow Bar Graph

D - Displayed Detent Flow

E - SCV I Extend Detent Time

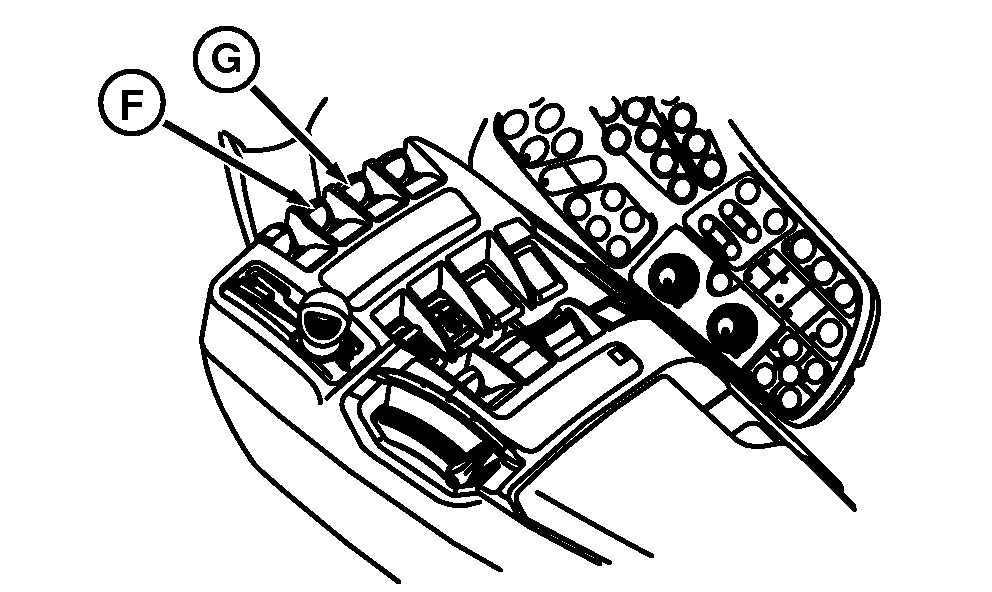

F - SCV I Lever

G - SCV II Lever

H - SCV I Retract Detent Flow Bar Graph

I - SCV I Retract Detent Time

J - Continuous

Avoid operating tractor under load until transmission/hydraulic system has warmed up.

1. Install jumper hose (A) into SCV I coupler.

2. Select SCV button.

3. In the screen left region activate hydraulic temperature screen (B).

4. Select SCV I extend detent flow bar graph (C).

5. Rotate thumb wheel, forward to increase or rearward to decrease detent flow setting. Set SCV I detent flow at 7.2 (D).

6. Select arrows in SCV I extend time box (E).

7. At the pull down menu, scroll down to C, continuous (J), then press Confirm button.

8. Pull SCV I lever (F) to extend.

9. Select SCV I retract detent flow bar graph (H).

10. Rotate thumb wheel, forward to increase or rearward to decrease detent flow setting. Set SCV I retract detent flow at 7.2 .

11. Select arrows in SCV I retract time box (I).

12. At the drop down menu, scroll down to C, Continuous, then press Confirm button.

13. Follow above procedure to set SCV II as described above. At CommandCenter™ select SCV II extend and retract softkeys and pull SCV II lever (G) to perform system warm up.

14. Shift transmission to PARK position and operate engine at 1500 rpm.

15. Monitor left region hydraulic temperature screen until temperature reaches 38° C (100 ° F).

16. Return SCV I and SCV II lever to neutral position.

17. Disconnect jumper hose.
