Using FieldCruise™

IMPORTANT: Engine must be running for FIELDCRUISE adjustment to operate.

RXA0099745-UN-07NOV08

Engine

RXA0104035-UN-24JUL09

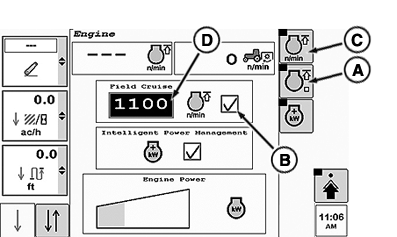

Engine Page

A - FIELDCRUISE Settings Softkey

B - Check Box

C - FIELDCRUISE On/Off Softkey

D - RPM Input Box

Engine speed can be adjusted from 1100—2210 rpm. Changes to rpm setting take place immediately.

FIELDCRUISE utilizes a constant speed governor curve, providing instant response to varying loads.

Limiting engine speed in light load situations may improve fuel economy.

IVT :(Infinitely Variable Transmission)™Selecting appropriate CommandCenter™ IVT setting is the preferred method of controlling engine rpm, but FIELDCRUISE can be considered for certain applications such as PTO operation when baling.

FIELDCRUISE must be on before settings may be changed. While operating, engine rpm will attempt to change to match speed shown in rpm input box (E).

To Activate FIELDCRUISE:

1. Select Engine.

   NOTE: When FIELDCRUISE On/Off softkey (A) is selected, it toggles FIELDCRUISE on or off and displays check box (B) either checked for FIELDCRUISE ON or unchecked for FIELDCRUISE OFF.

2. When engine page appears, select FIELDCRUISE Settings softkey (C).

   To Adjust Engine rpm:

   NOTE: When FIELDCRUISE Settings softkey is selected, rpm speed (D) is high lighted.

3. Select FIELDCRUISE Settings softkey .

4. Rotate thumb wheel forward to increase engine rpm or rearward to decrease engine rpm.
