Intelligent Power Management (If Equipped)

RXA0099745-UN-07NOV08

CommandCenter™Menu Engine Icon

RXA0104036-UN-22JUL09

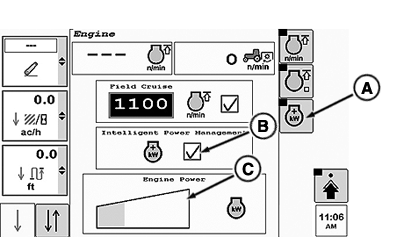

Engine Page

RXA0104037-UN-22JUL09

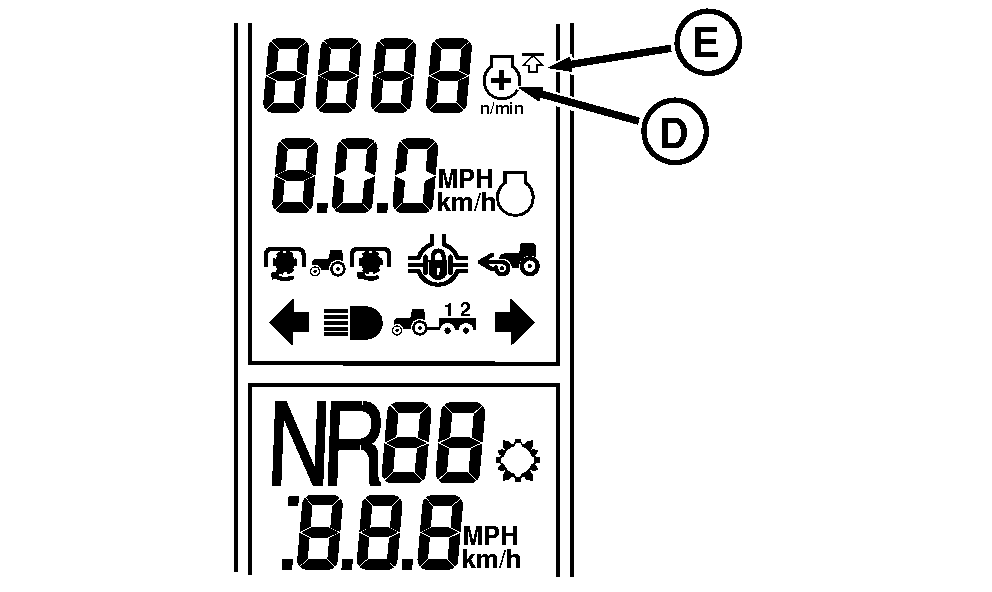

Corner Post Display

A - Intelligent Power Management Softkey

B - Intelligent Power Management Check Box

C - Intelligent Power Management Level

D - Power Increase Indicator

E - FieldCruise™Indicator

Intelligent Power Management provides a controlled power boost of up to 26 kW (35 hp) to tractor under the following operating conditions:

• Transport during acceleration; power boost occurs in steps through the range from 23—28 km/h (14.3—17.4 mph).
• Transport during deceleration; power boost ramps down in equal steps in the range from 23—18 km/h (14.3—11.2 mph).
• Tractor moving and PTO under load; must be moving at least 0.5 km/h (0.3 mph) and PTO consuming moderate power before power boost engages.

Power increase is not provided under draft applications or non loaded rear PTO applications. Power increase is only provided when required.

1. Select Engine.

   NOTE: When Intelligent Power Management is engaged, the Intelligent Power Management level (C) is identified by the solid portion displayed. Segments to the right of the solid portion indicate additional engine power above rated.

   NOTE: Intelligent Power Management is available as a factory or field installed option.

   With tractor moving and rear PTO under load or in transport above 23 km/h (14.3 mph), power increase indicator (D) will appear on corner post display and Intelligent Power Management level is displayed on the COMMANDCENTER.

2. Select Intelligent Power Management softkey (A). Check appears in Intelligent Power Management check box (B).
