iTEC Functions

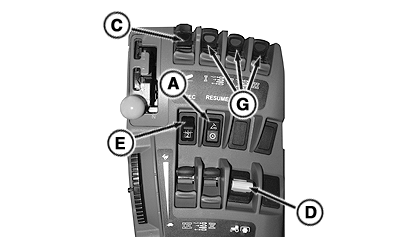

RXA0101584-UN-02APR09

CommandARM™

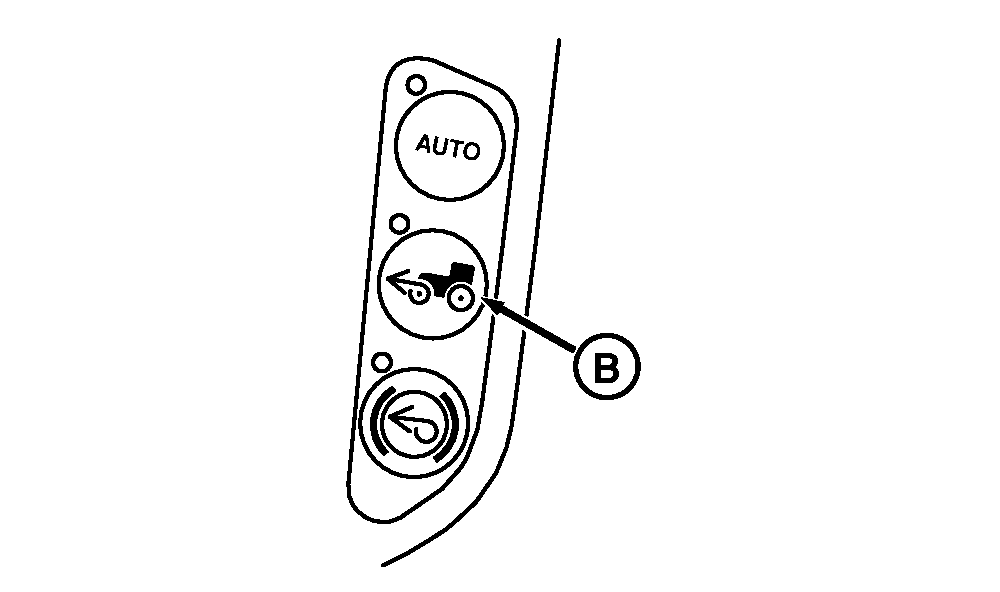

RXA0101583-UN-02APR09

MFWD Button

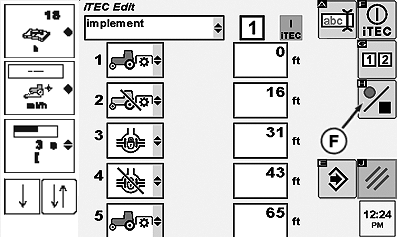

RXA0104008-UN-30JUL09

Record/Playback Softkey

A - Automatic Power Shift Switch

B - MFWD Button

C - Hitch Raise/Lower Lever

D - PTO Lever

E - Sequence Switch

F - Record/Play Back Softkey

G - SCV Levers

Intelligent Total Equipment Control (iTEC) is used to combine any of the following functions together to make one sequence perform with the touch of one switch.

NOTE: APS maximum gear must be set each time the tractor is started.

APS Switch (A) can be resumed during LEARN mode.

APS is cancelled by programing a transmission shift in iTEC. (See Operating Automatic Powershift in Operating the Tractor Section.)

MFWD Button (B) can be turned on or off during sequence execution. Button can be used to override a function by iTEC.

Hitch Raise Lower lever (C) can be activated to raise or lower hitch during an iTEC sequence.

Rear PTO Lever (D) lever can be used to override a function by iTEC. Lever must be in the ON position for iTEC to control the PTO engagement status.

Manually operating PTO requires rear PTO lever to be turned OFF and then ON again.

Sequence Switch (E) starts or cances an iTEC sequence.

Record/Playback softkey (F) enables programming a sequence of functions for iTEC. Pressing a second time ends the string of functions learned for that sequence.

SCV Levers (G) control the raising and lowering of individual implements.

NOTE: Learn mode requires SCV control to be in detent position. Flow Rate and Timed detent will not be learned and can be changed at any time. Timed detent is used to cancel SCV functions.

while executing a sequence, any manual adjustment to a function made will result in that function no longer be allowed under iTEC control and the "error" indicator will be shown over that function.

iTEC can learn four functions for SCVs:

• Extend Detent
• Retract Detent
• Float
• Neutral (Used to cancel Float or Detent operations)

Differential lock can be engaged by depressing switch on floor boar between clutch and brakes or disengaged by pressing the brakes during a sequence.

LEARNED FUNCTIONS
Item	Function(s)
Rear Hitch	RAISE, LOWER, Cancel
Transmission Gear	Upshift or Downshift in Forward Gear
SCV (CommandARM™/TouchSet™ Only)	EXTEND/ RETRACT/FLOAT/ NEUTRAL
MFWD	ON/Brake Assist/Auto
Rear PTO	ON/OFF
Differential Lock	ON/OFF
Automatic Powershift (PST Transmission Only)	Resume
IVT (Infinitely Variable Transmission)™Set Speed Forward (IVT Only)	Increase/Decrease
