Record Product Identification Number

RXA0106290-UN-03FEB10

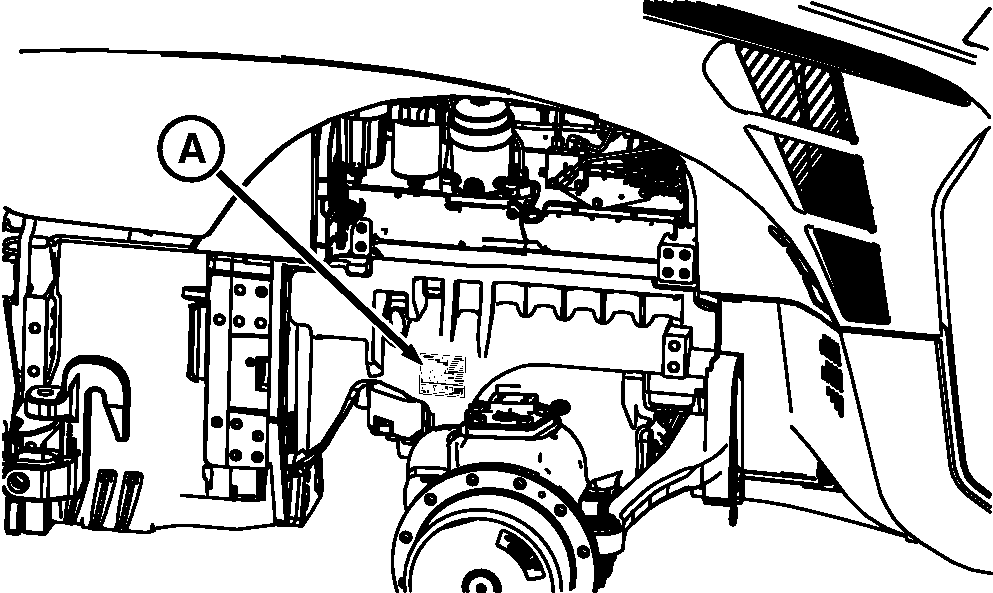

A - Identification Data Plate

Identification data plate (A) is along right-hand tractor frame.

Product Identification Number
*____________________________________________________*

PRODUCT IDENTIFICATION NUMBER (PIN): consist of 17 positions without spaces, dashes or other interruptions as follows:

Positions 1-3: World Manufacturer Code (WMC) (e.g. 1RW.

Positions 4-7: is the numeric portion of the tractor model number.

Position 8: Model Identifier suffix (Additional machine information).

Position 9: is a check letter calculated based on the values and positions of the other sixteen characters.

Position 10: Calendar Year of Manufacture may be a letter or a number which reflects the calendar year (not model year) of manufacture. The value of this character is specified in Table below.

Characters Used To Designate Year Of Manufacture Or Model Year
Year	Code	Year	Code
2010	A	2012	C
2011	B	2013	D

Position 11: Transmission Option Code indicated in the table.

Configuration and Transmission Option Codes Used in Position 11
D	IVT™/AUTOPOWR™
P	POWERSHIFT

Positions 12: Additional Manufacturing or Product Information provide additional information about the product and when it was built. If the tractor is a track tractor, the character in position 12 will be a “9”. Otherwise the character in position 12 will be a numerical zero, “0”.

Positions 13-17: Sequential Serial Number will be a serialized number uniquely identifying individual tractors bearing the same model designation.

Additionally: An asterisk (*) shall immediately precede the first character and immediately follow the last character of the PIN to discourage tampering or altering of the PIN.
