Record Engine Serial Number

RXA0082152-UN-11JUL05

RXA0112371-UN-29NOV10

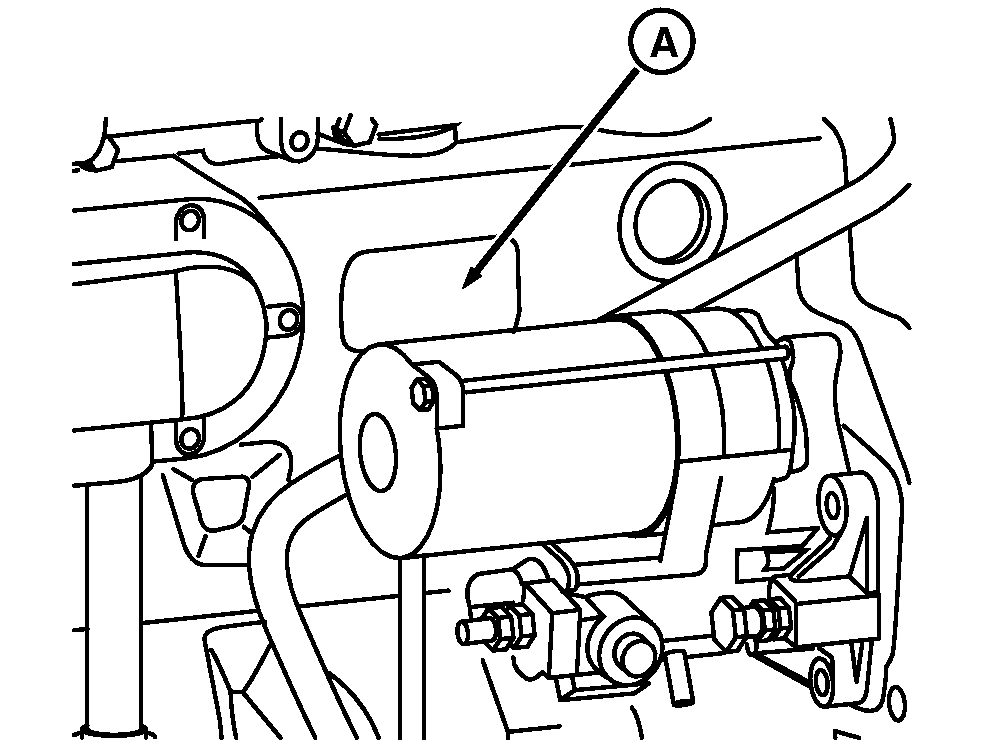

A - Engine Serial Number Plate Location

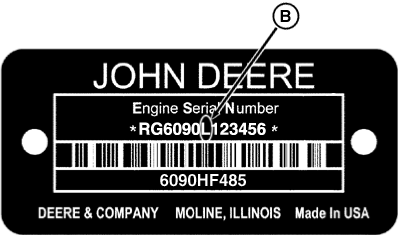

B - Engine Serial Number Plate

Identification plate location (A) is on left side of engine near starter.

Serial Number
*–––––––––––––––––––––––––––––––––––––––––––––––––––––*

Engine emission tier level is identified by seventh character of the engine the engine serial number.

Emission Tier Level	Seventh Character of Engine Serial Number
U.S. EPA Tier 3 and EU Stage III A	L
U.S. EPA Tier II and EU Stage II	G
